Overview

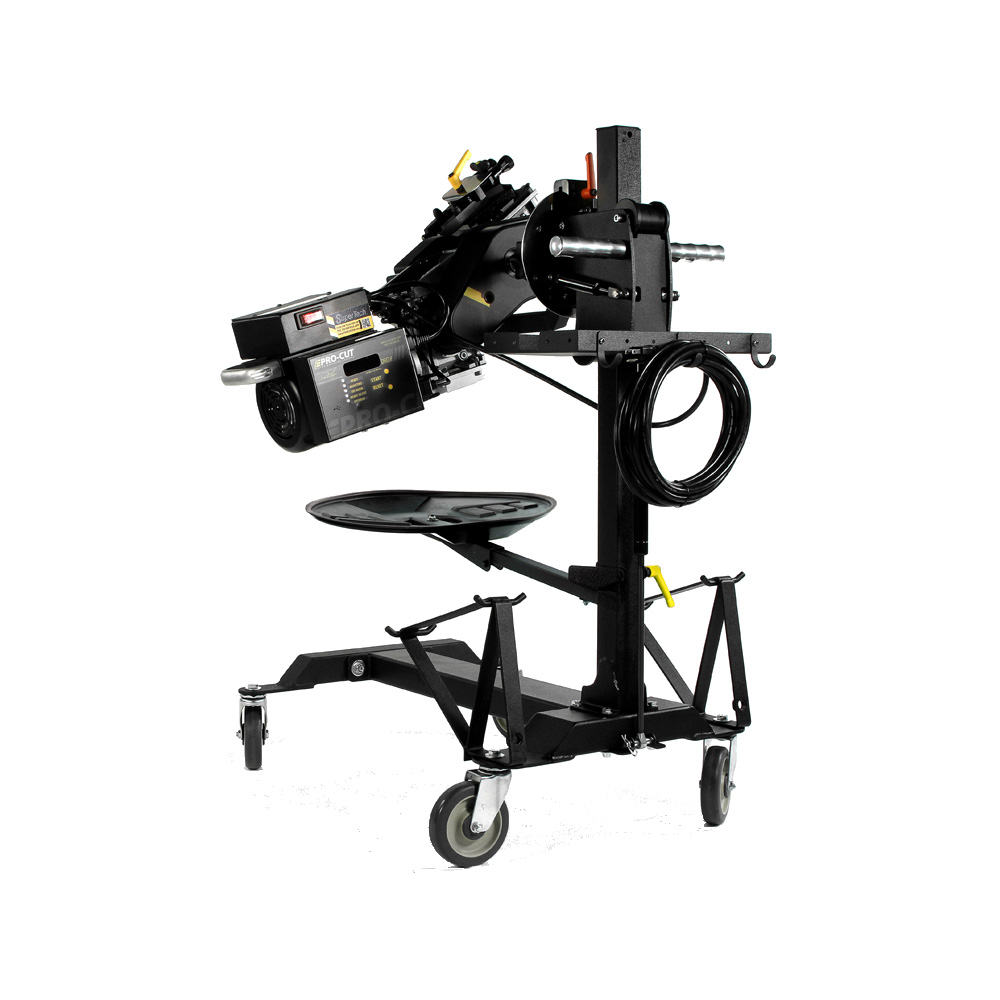

The PFM X9 combines the best existing technologies, like patented PFM one button computerized compensation system and 4 wheel 4-axis fully adjustable trolley and combines with a rigid new X-Frame lathe chassis, powerful belt driven high torque drivetrain, and super bright 6 LED light.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
Fit on every vehicle:
We have the adapters that will connect you to almost any vehicle on the road today and the power to turn stiff all-wheel drive and truck axles.
Service any car on any lift in 6-8 minutes:
Two post, four post, drive-on, or even no lift....it doesn't matter! Pro-Cut's fully adjustable trolley allows you to roll up and mount your Pro-Cut lathe with confidence.
Matched Rotors as a new revenue source:
Tyres need to be balanced, wheels need to be aligned and rotors need to be matched! Adding rotor matching to your service offerings adds a new revenue source.
see brochure for more information or call Logicar today
Enquiry
SPEED LOCK CUTTING HEAD (Standard)
| Maximum Rotor Thickness |
1.75" |
| Minimum Rotor Thickness |
0.20" |
| Maximum Rotor Diameter |
16.4" to 17.6" |
| Maximum Friction Face |
3.30" |
| Maximum Depth of Cut |
0.015" / Side |
| Weight |
7.68lbs |
PRECISION-MATCH CUTTING (Optional)
| Maximum Rotor Thickness |
2.00" |
| Minimum Rotor Thickness |
0.20" |
| Maximum Rotor Diameter |
15.6" to 17.1" |
| Maximum Friction Face |
3.82" |
| Maximum Depth of Cut |
0.020" / Side |
| Weight |
9.38lbs |
MACHINE
| Spindle Speed |
118 RPM |
| Carriage Speed |
0.005" / rev |
| Motor |
15.6" to 17.1" |
| Shipping Weight |
3.82" |
| Electrical Supply |
0.020" / Side |
| Feed Distance |
9.38lbs |
