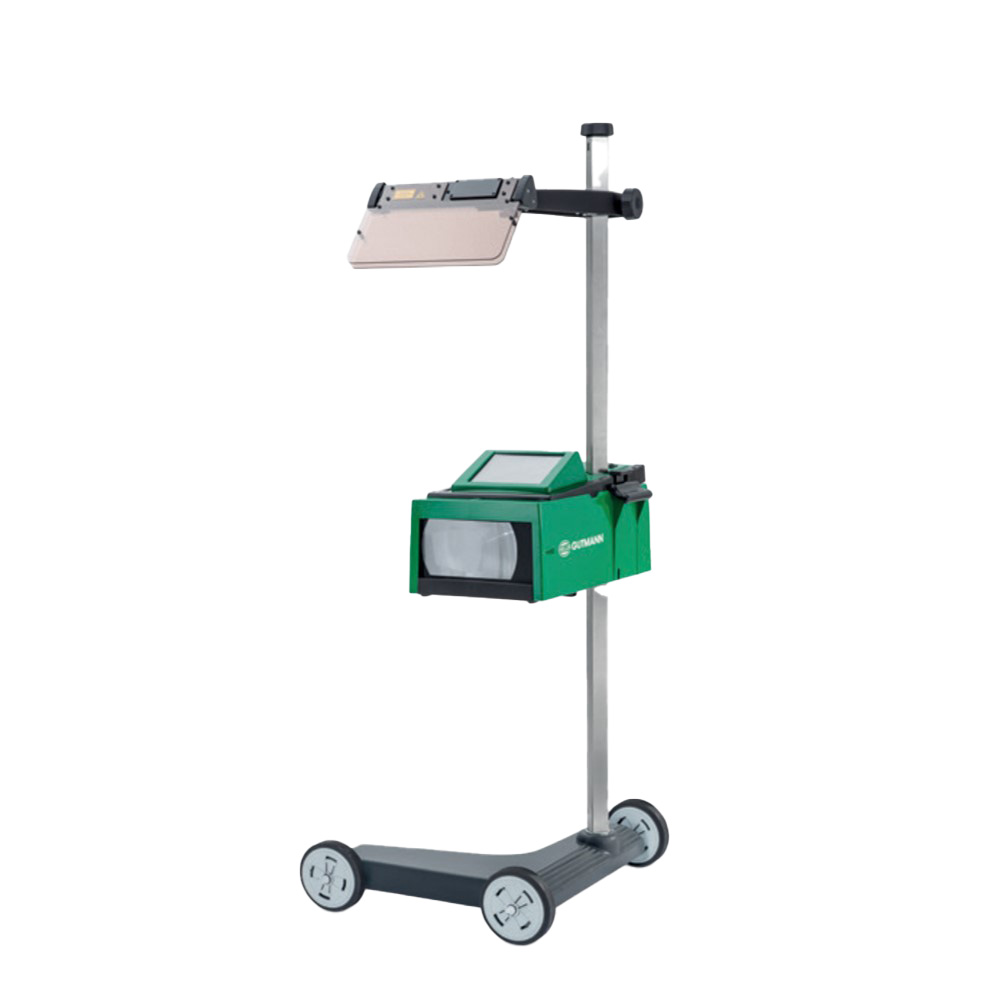

Hella SEG Series Headlight Aimers

Model No.

SEG IV AND SEG V

Above zero point (h/v)*

0 - 600mm at 10m distance (0 - 6 %)

Below zero point (h/v)

0 - 600mm at 10m distance (0 - 6 %)

Right of zero point (h/v)

0 - 1000mm at 10m distance (0 - 6 %)

Left of zero point (h/v)

0 - 1000mm at 10m distance (0 - 6 %)

Measureable light intensity

0 - 150,000cd (Candela)

Light intensity

0 - 240lx (Lux)

Distance to headlight

300 - 700mm

Min/max measurement height SEG

250 - 1,250mm (SEG IV DLLX, SEG V)
250 - 1,630mm (SEG IV SE)

Light intensity tolerance

± 5%

Measurement accuracy tolerance

± 0.1%

Ambient temperature

5 – 40°C

Relative atmospheric humidity

20 - 80%

Power supply

240V - 50Hz (SEG V)
