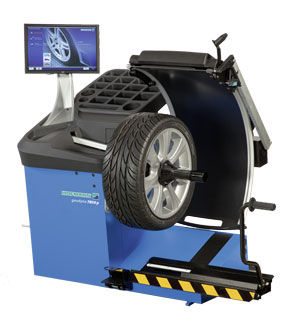

HOFMANN GEODYNA 7850P - Car Wheel Balancer with Touchscreen Monitor

FEATURES

Car wheel balancer with touchscreen monitor, automatic non-contact data entry and easyWeight pinpoint indicator light – An accurate, fast and easy solution to position adhesive weights on the wheel. The integrated wheel lift automatically lifts a wheel to the last preset height.

• High-productivity wheel balancer
• High capacity, wheels up to 42” of diameter and 70 kg of weight
• Rim scanner for
  - automatic non-contact rim profiling
  - automatic selection of balancing mode and weight position
  - automatic acquisition of rim diameter and offset
• Smart Sonar for automatic non-contact acquisition of rim width
• Touchscreen monitor with graphical user interface PLATINUM – fast and very intuitive
• easyWeight: fast pinpoint bottom weight placement. Pinpoint laser light indicator to accurately position adhesive weights on the wheel
• Alternative positioning of adhesive weights with the geodata gauge arm
• Torque-controlled Power Clamp device – fast and accurate clamping of the wheel
• Stop-in-Position feature where the operator only has to touch the amount of unbalance on the screen and the wheel is automatically indexed to correction position
• QuickBal for reduced measurement time:
• Short start-stop cycle time: 4.5 seconds (15’’ rim)
• VPM measurement technique for uncompromised accuracy
• Telescopic wheel guard – requiring no additional back space
• New ergonomic weight tray
• Rim lighting to facilitate application of the geodata gauge arm
• Imbalance minimisation and optimisation programs
• Networking capability with the optional networking software
• Compatible with asanetwork
• Print-out with optional printer
• BW4030 – the ultimate wheel lift for wheel balancers, integrated in the cabinet, operated by the balancer's logic, automatically lifting a wheel of the same set to the correct height and consequently improving centring and clamping of the wheel
