Overview

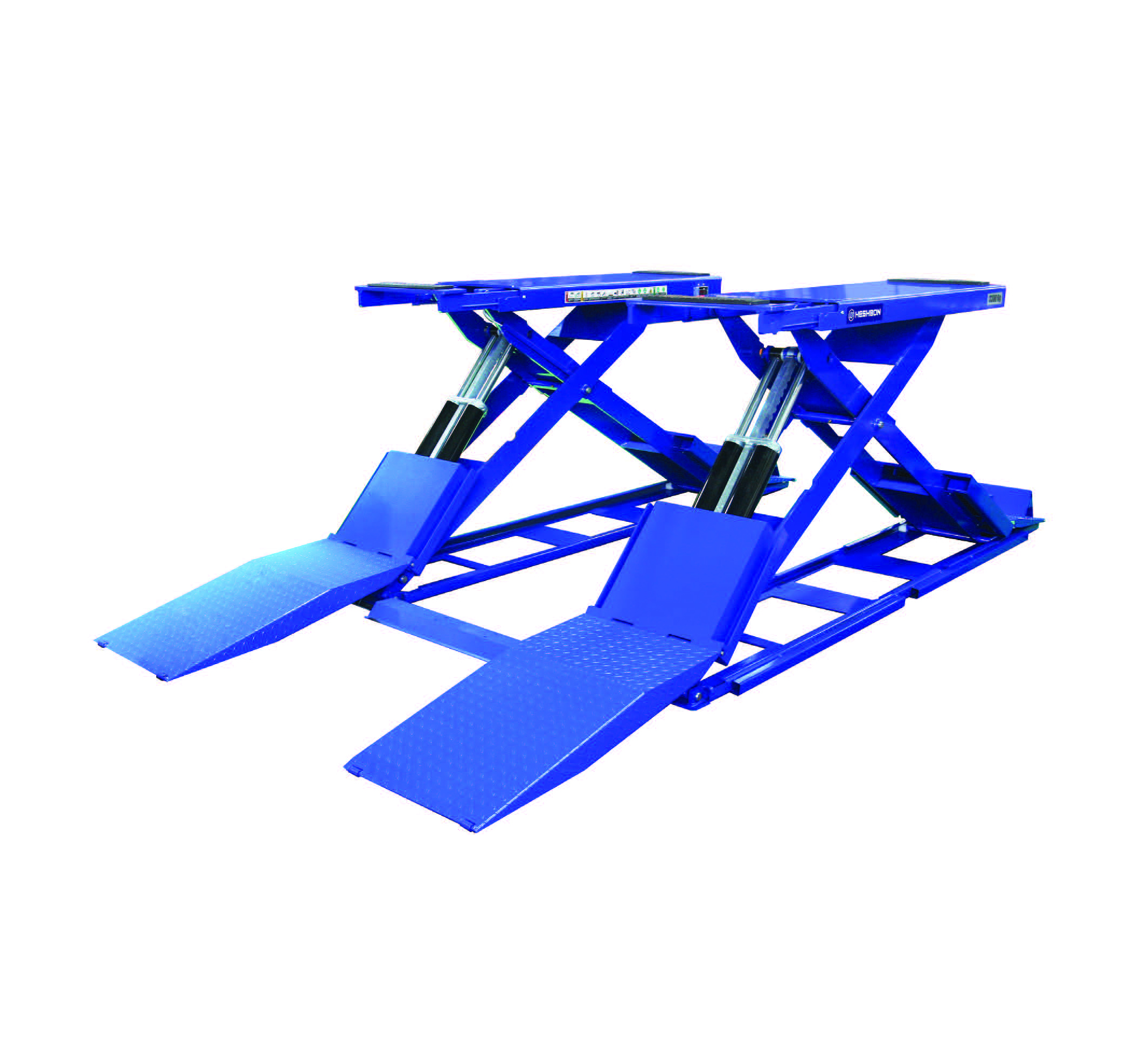

Heshbon HL-32X, designed and manufactured in Korea with the option for either in/above ground mounting and easy synchronization control system by special hydraulic valves, this versatile scissor lift is a smart choice in a competitive market and will be an upgrade to your workshops capabilities.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
FEATURES
- Master & slave cylinder system composed by high-performed durable hydraulic cylinders
- Easy synchronization control system by special hydraulic valves
- Air cylinder operated locking device
- Platform slide extensions
- Front detachable wheel stopper for drive through
- Rubberpads on the platform to protect the vehicle chassis
- Applicable to both in/above-ground mount
- Descend alarm signal
- De-synchronization detecting electronic photocell
- Hydraulic hand-pump for emergency ascend/descend
- Two step descending system gives full foot protection
- Van Adaptor kit (OPTION)
- Pit frame for in-ground type (OPTION)
Enquiry
Model No. HL-32X
Lifting Capacity (kg) 3,300kg (CE: 3000kg)
Max.Lifting Height (mm) 140 ~ 1,953mm
Dimension (mm) 4,254(L) X 2,065(W) X 140(H)
Power Supply & Motor 3ph : 3HP, 4P, 220/380V, 50/60Hz
Net Weight 1,050kg
