Overview

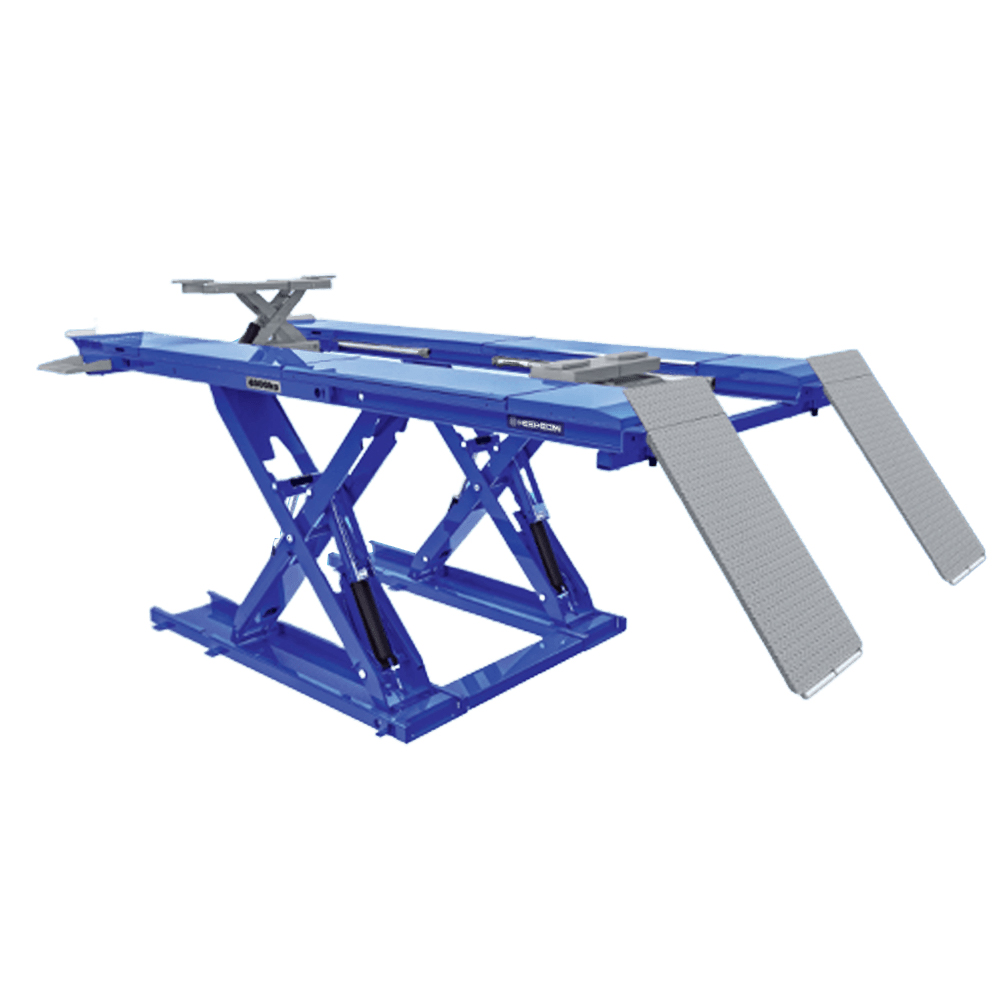

Heshbon HL-53X, designed and manufactured in Korea with front turn-table recesses and rear sliding plates for 4-wheel alignment operation as well as the option for either in/above ground mounting this versatile scissor lift is an affordable choice in a competitive market that will be an upgrade to your workshops capabilities.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
FEATURES
- Master & Slave system composed by high-performed durable hydraulic cylinders
- Air operated locking device
- Easy synchronization control system by special hydraulic valves
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation
- Applicable to both in/above-ground mount
- Pit frame for in-ground type (Option)
- Step-up plate for worker’s convenience (Option)
- Lighting set, 4 units (Included)
- Two-step descent system gives full foot protection
Enquiry
Model No. HL-53X
Lifting Capacity (kg) 4,000 kg / 2,000 kg
Max.Lifting Height (mm) Body : 1,900 / Jack : 530 mm
Dimension (mm) 5,945(L) X 2,150(W) X 260(H)
Power Supply & Motor 1ph, 2.5HP,4P,220V,60Hz & 3ph, 2HP, 4P, 220/380V, 50/60Hz
Net Weight 2,150 kg
