Overview

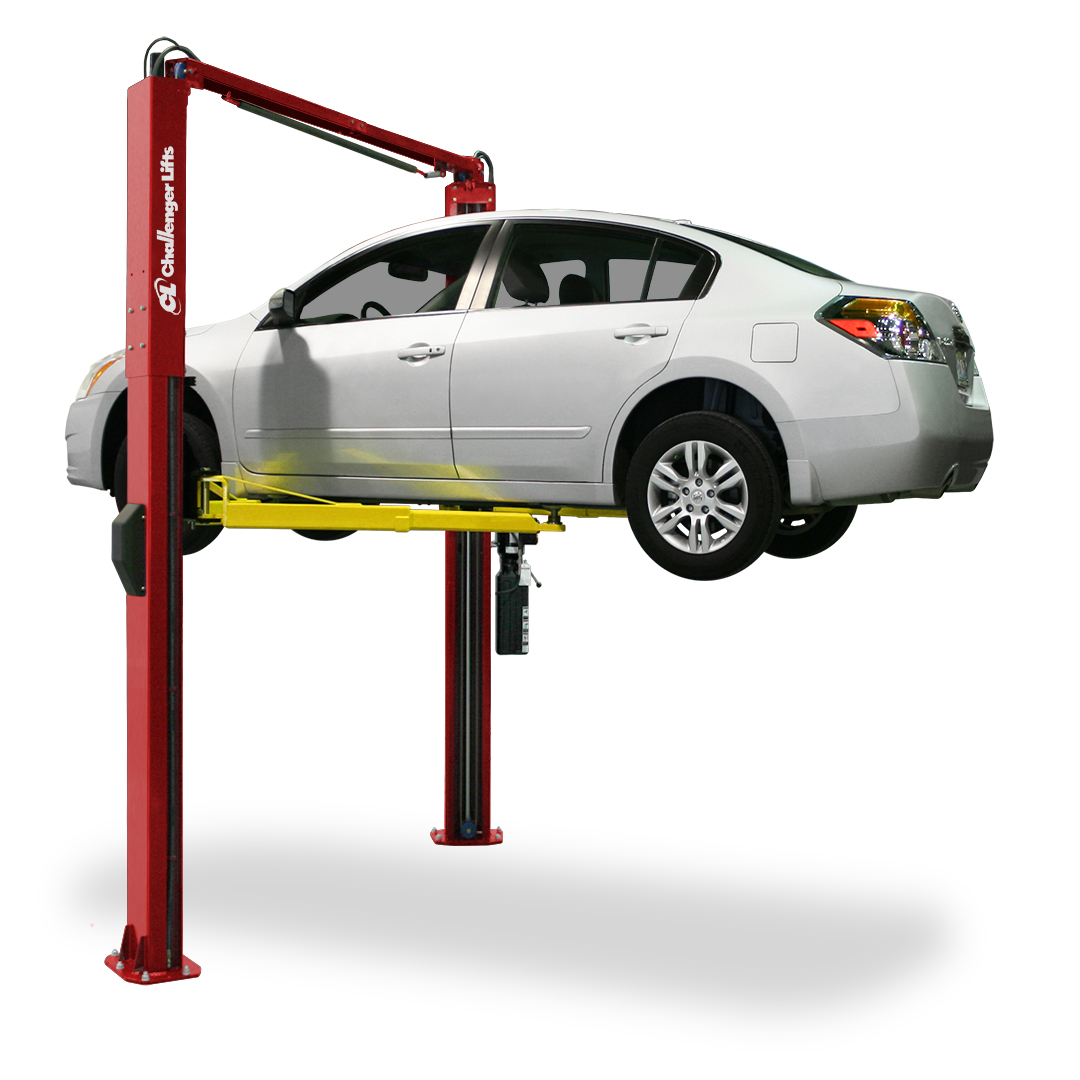

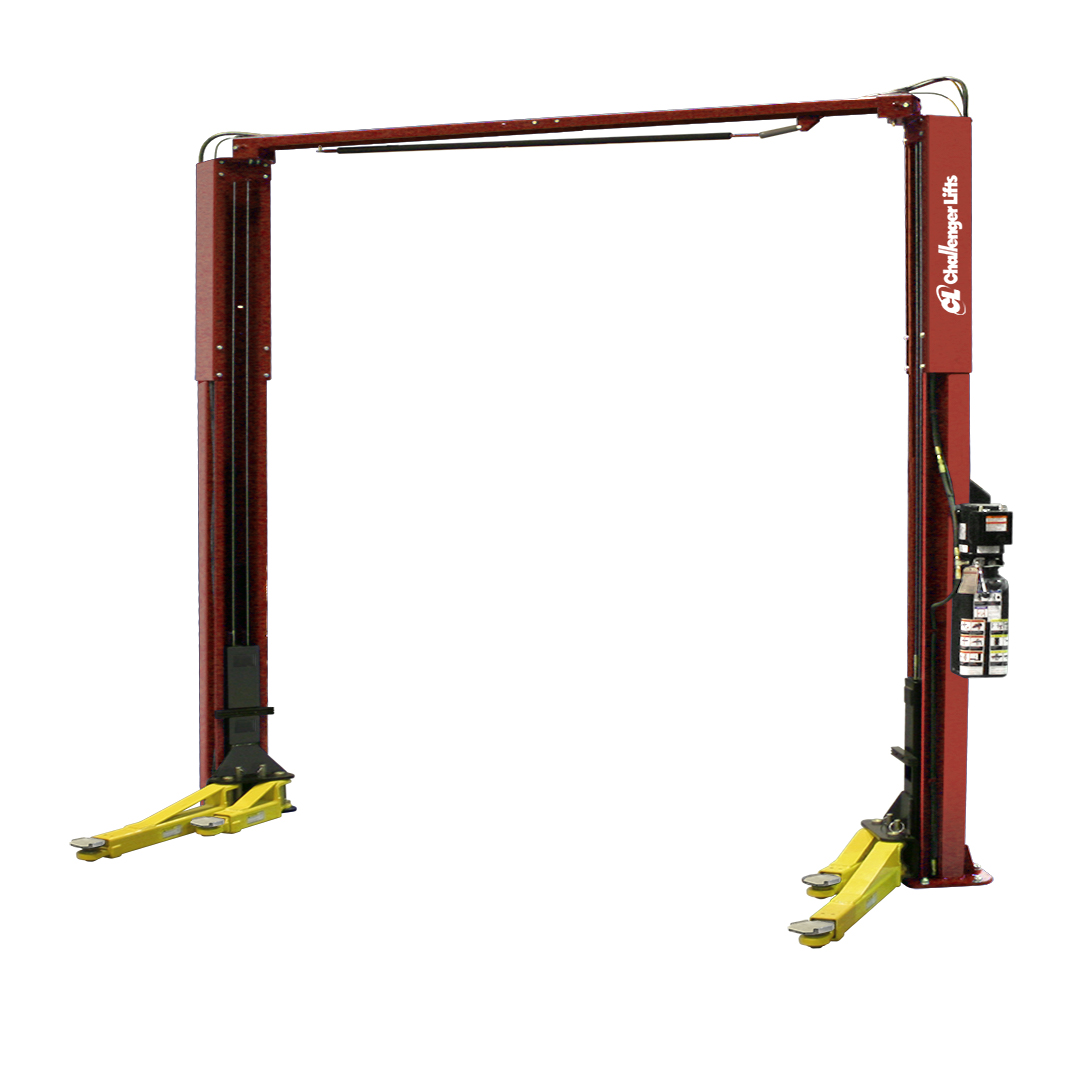

High Quality 2-post symmetrical or asymmetrical car lift from Challenger Lifts.
Challenger Lifts’ SA10 features the ability to be configured in either the symmetric or asymmetric position depending upon the service or spacial requirements of your workshop.
The SA10 features 3-stage front arms that provide maximum extension and

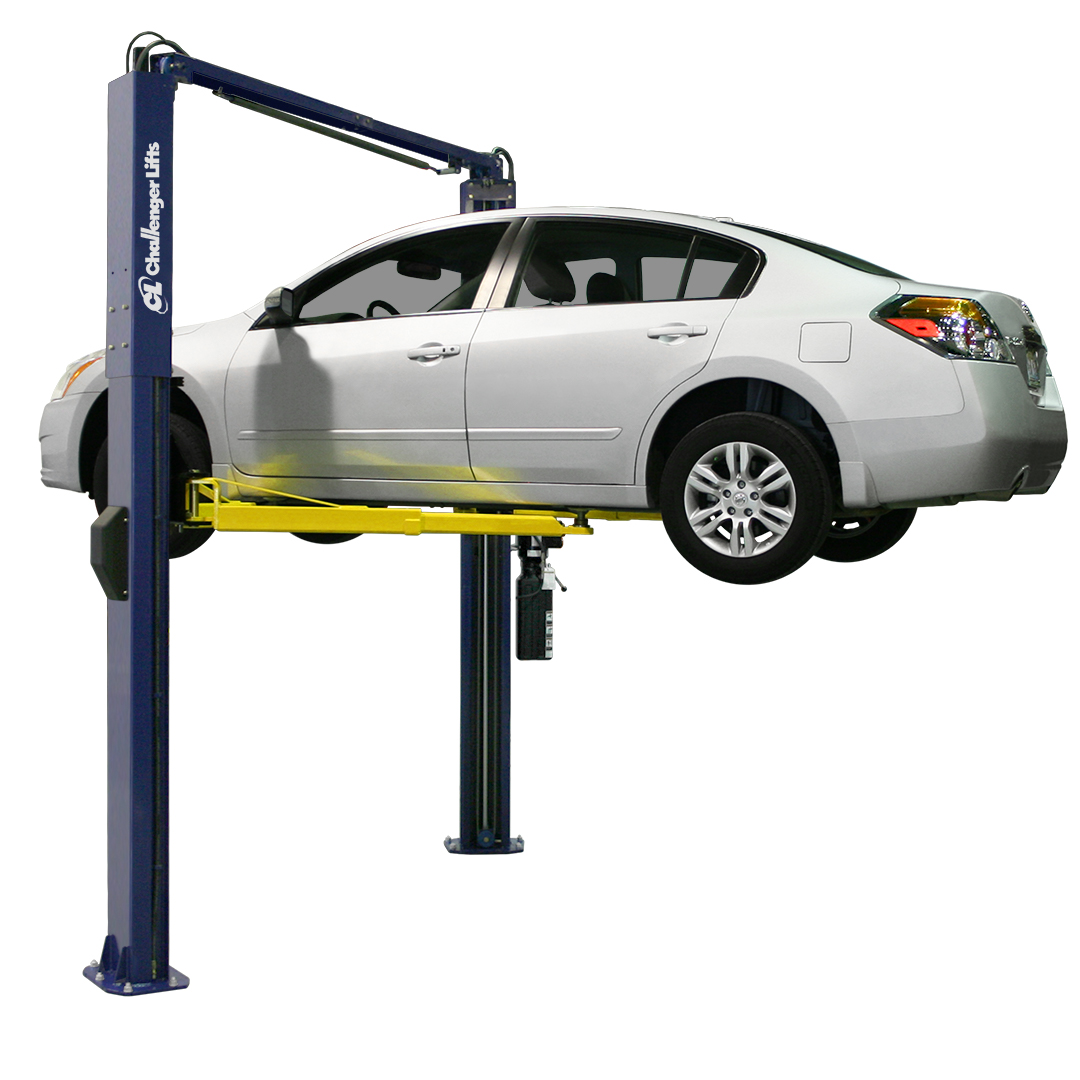

retraction ensuring safe and reliable lifting on all vehicles within rated capacity. With adjustable height and width options as standard, double telescoping screw pads, durable powder coat finish, plated arm restraints and pins and many other appealing features, the SA10 will accommodate the rigorous demands of a full service facility. Available in red and blue.
The post lifts come with accessories to turn your two post vehicle lift into a complete productivity centre. All Challenger two post lifts are designed and manufactured to the highest standards for performance, durability and longevity.
- BrandChallenger Lifts SA10
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
CALL LOGICAR FOR AVAILABILITY
FEATURES

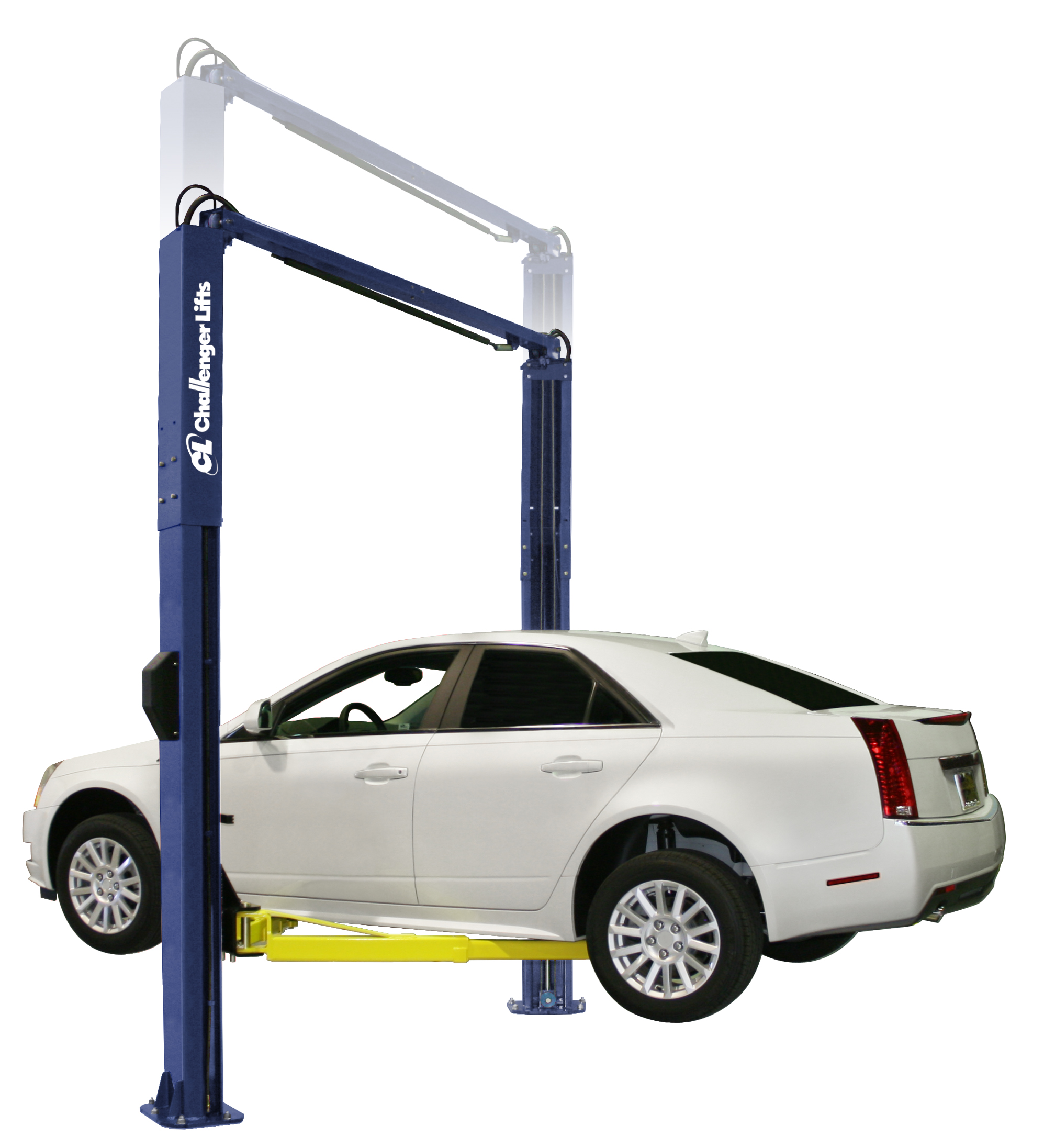

- Optional 2’ column height extensions accommodate higher profile vehicles. Includes (2) height extensions, hose extension kit and new cables. Part#: SA10EH2
- 3-stage front arms provide greater overall arm sweep
- Set up in a symmetric or asymmetric configuration
- Adjustable height and width options accommodate varying service bay sizes
- Double Telescoping Screw Pads adjust to multiple heights minimizing the need for adapters
- Rubber foot pads minimise stress to vehicles with delicate undercoatings
- Padded overhead shut off system prevents vehicle damage
- Single-point mechanical lock release system allows technician to disengage both columns simultaneously
- Wide rubber door guards protects vehicle from door damage
- Premium powder coat finish provides long-lasting durability
- Plated Arm Restraints and Arm Pins inhibit rust and provide long-lasting durability
- Mirrored “S” shaped column
- *Available in single and three phase power supply
Challenger Lifts USA meet strict standards to obtain Gold Label of the ANSI Accredited ALI Certification, which by Australian standards is required for Worksafe registration.
Compliance and safety is a fundamental duty at Logicar. Logicar can provide Worksafe Design Registration certificates to help you make the right decision in creating a safe workplace for your employees.
Enquiry
|
Model Number
|
SA10
|
|
Lift Configuration
|
Symmetric Configuration
|
Asymmetric Configuration
|
|
Lift Capacity*
|
10,000 lbs. (4536kg)
|
|
A Rise Height1
|
74-7/8" (1892mm)
|
|
B Overall Height
|
11' 4-1/2" / 11' 10-1/2" (3467mm / 3620mm)
|
|
C Overall Height (Cylinder Extended)
|
11' 10-1/2" (3620mm)
|
|
- with SA10EH2 2' height extension
|
13' 4-1/2" / 13' 10-1/2"(4077 / 4230mm)
|
|
D Overall Base Width
|
10' 9" / 11' 3" (2356mm / 2508mm)
|
10' 11-1/2" / 11' 5-1/2" (3340mm / 3493mm)
|
|
E Drive-Thru Clearance
|
92-3/4" / 98-3/4" (2356mm / 2508mm)
|
88-1/2" / 94-1/2" (2248mm / 2400mm)
|
|
F Floor to Overhead Swith
|
131-1/8" / 137-1/8" (3331mm / 2483mm)
|
|
G Short Arm Reach
|
22-3/8" - 41-1/2" (3331mm - 1054mm)
|
|
H Long Arm Reach2 (min/max)
|
38-1/4" - 59" (972mm - 1499mm)
|
|
I Screw Pad Height
|
4-5/8" - 6-7/8" (111mm - 165mm)
|
|
J Inside of Columns
|
106-3/4" / 112-3/4" (2711mm - 2864mm)
|
101-1/2" / 107-1/2" (2578mm - 2731mm)
|
|
Motor
|
2HP, Single Phase, 60Hz
|
|
Voltage
|
208v - 230v
|
|
Speed of Rise
|
48 seconds
|
|
Max. Load per Arm
|
2,500 lbs. (1134kg)
|
|
Ceiling Height Required
|
12 (3658mm)
|
*Lift capacity ratings are based on loads equally distributed on all four arms. 1 Rise Height is measured with telescoping screw pads in highest position. 2 Specifications are listed without rubber pad, for measurements with rubber pad add 1/4" (6mm) 3 Overall width of Asymmetric lift is 11' 3"' / 11' 9" including power unit
|
