Overview

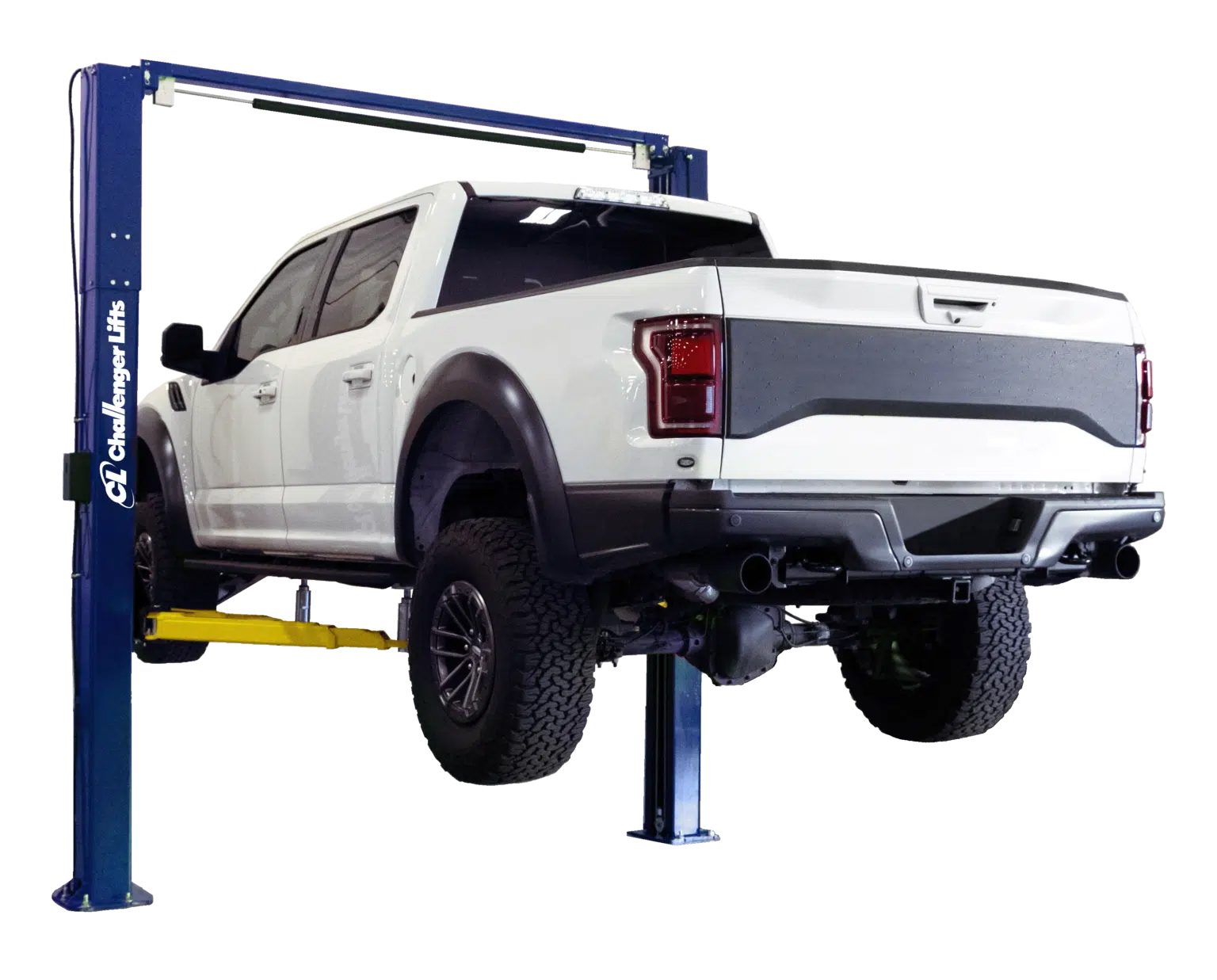

Challenger adds the industry leading Versymmetric® Technology to the popular economy grade 4535 kg 2-post hoist, the VLE10. Expand your service capabilities with the VLE10’s ability to lift a wide range of vehicles.
- BrandCHALLENGER LIFTS VLE10
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
CALL LOGICAR FOR AVAILABILITY
FEATURES
- 3-stage Versymmetric® front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay
- 301mm standard height fits in service bays with 304mm extra height
- Double telscoping screw pads with rubber foot pad
- Padded overhead shut-off prevents vehicle damage
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10
- Rubber door guards protect vehicle from door damage
- Premium powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
Challenger Lifts USA meet strict standards to obtain Gold Label of the ANSI Accredited ALI Certification, which by Australian standards is required for Worksafe registration.
Compliance and safety is a fundamental duty at Logicar. Logicar can provide Worksafe Design Registration certificates to help you make the right decision in creating a safe workplace for your employees.
For any spare parts call: (02) 9671 7811
Enquiry
Model Number
|
VLE10
|
Lift Configuration
|
Symmetric Configuration
|
Asymmetric Configuration
|
Lift Capacity*
|
10,000 lbs. (4536kg)
|
Arms
|
3-stage front/2-stage rear
|
Overall Height
|
143.875" (3632)
|
Rise Height
|
74.75" (1879.6mm)
|
Screw Pad Height
|
4.25" / 6.75" (107.95 / 171.45mm)
|
Overall Width
|
131.625" (3343mm)
|
Inside Columns
|
110" (2764mm)
|
|
Floor to Overhead Switch
|
137" (3479mm)
|
Front Arm Reach
|
22.3" - 39.375" (556mm - 990mm)
|
Rear Arm Reach
|
38.75" - 55.375" (984.25mm - 1397mm)
|
Motor / Voltage
|
2HP, 208v230v, 60Hz, 1Ph
|
Rise Time
|
44 s
|
*Lift capacity ratings are based on loads equally distributed on all four arms. 1 Rise Height is measured with telescoping screw pads in highest position. 2 Specifications are listed without rubber pad, for measurements with rubber pad add 1/4" (6mm) 3 Overall width of Asymmetric lift is 11' 3"' / 11' 9" including power unit
|
