Overview

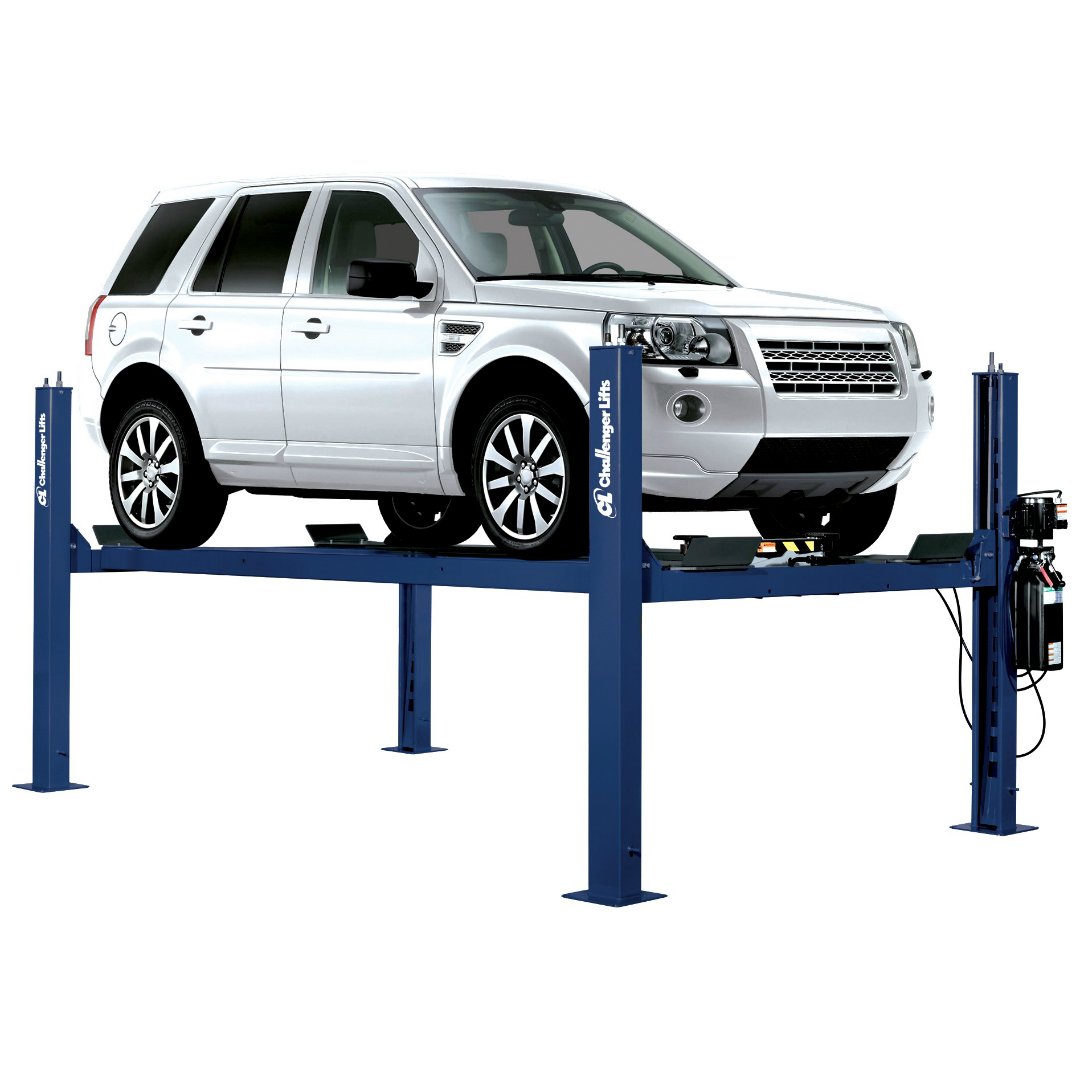

Challenger’s CL4P9 4,082kg capacity 4-post lift was designed with versatility in mind.
The CL4P9S, CL4P9X & CL4P9W 4-post home car lifts are perfect for light duty commercial service or storage applications.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
CALL LOGICAR FOR AVAILABILITY
Challenger’s CL4P9 9,000 lb. (4,082kg) capacity 4-post lift was designed with versatility in mind. From home enthusiast and commercial storage applications to light duty general service applications, these lifts compliment your service needs and are loaded with real benefits. They are essential for the “do it yourself” home garage, providing the best of both worlds - store a vehicle up top and below with up to 80” of clearance when the lift is fully raised, or use this lift to service your vehicles.
Another great feature of the CL4P9 series include free standing 4 post lift is its portability. You can choose between bolting it down and leaving it free-standing so you can relocate it anywhere. If convenience is important to you, the free standing 4 post lift is a great option.
With optional rolling jacks, ramp upgrades, oil drain pan, etc., you'll be able to accommodate just about anything that comes in the garage and afford room to grow with its reasonable cost.
FEATURES
- Heavy-duty commercial grade design with rigid formed columns and runways for superior strength and dependability, yet light enough to move around the garage (with optional caster set)
- 240v single phase voltage
- Versatile design allows it to be either Free-Standing or Bolt-to-Floor
- Built-in runway rail system accommodates optional rolling jacks, jack trays, drip trays, and storage platforms
- Single hydraulic cylinder protected under neath runway
- Large molecular composite slider blocks for minimal wear and maximum dependability
Challenger Lifts USA meet strict standards to obtain Gold Label of the ANSI Accredited ALI Certification, which by Australian standards is required for Worksafe registration.
Compliance and safety is a fundamental duty at Logicar. Logicar can provide Worksafe Design Registration certificates to help you make the right decision in creating a safe workplace for your employees.
Enquiry
|
Model
|
CL4P7
|
CL4P9S
|
CL4P9X
|
CL4P9W
|
|
Lifting Capacity
|
7,000 lbs. (3175 kg)
|
9,000 lbs. (4082 kg)
|
|
A Length
|
16’ 31 /2” (4966mm)
|
17’ 51 /2” (5321mm)
|
Overall 19’ 51 /2” (5931mm)
|
|
B Width Overall
|
8’ 41 /2” (2553mm)
|
9’ 41 /4” (2851mm)
|
10’ 71 /4” (3232mm)
|
|
C Inside Columns
|
921 /8” (2340mm)
|
95” (2413mm)
|
110” (2794mm)
|
|
D Between Columns
|
1471 /2” (3747mm)
|
1601 /2” (4077mm)
|
184 3 /4” (4993mm)
|
|
E Height of Columns
|
6’ 71 /2” (2019mm)
|
7’ 1 /2” (2146mm)
|
8’ 1 /2” (2451mm)
|
|
F Height of Runways
|
53 /4” (146mm)
|
7” (152mm)
|
|
G Width of Runways
|
20” (508mm)
|
20” (508mm)
|
|
H Width Between Runways
|
38” (965mm)
|
38” (965mm)
|
|
I Rise Height
|
681 /8” (1731mm)
|
731 /4” (1861mm)
|
85 1 /2” (2172mm)
|
|
Max. Wheelbase*
|
1411 /2” (3594mm)
|
155” (3937mm)
|
179” (4547mm)
|
179” (4547mm)
|
|
Crossbeam Clearance Height
|
1 63” (1600mm)
|
68” (1727mm)
|
80” (2032mm)
|
80” (2032mm)
|
|
Motor
|
1HP
|
1HP
|
|
Voltage (Single Phase
|
240v
|
240v
|
|
Speed of Rise
|
120 Seconds
|
120 Seconds
|
|
Min. Recommended Bay Size
|
10’ x 20’ (3048mm x 6096mm)
|
11’ x 22’ (3353mm x 6707mm)
|
11’ x 22’ (3353mm x 6707mm)
|
14’ x 22’ (4267mm x 6707mm)
|
* Maximum wheelbase is based on a tire diameter of 30”
2 Height to bottom of crossbeam measured with lift sitting in highest lock position
