Overview

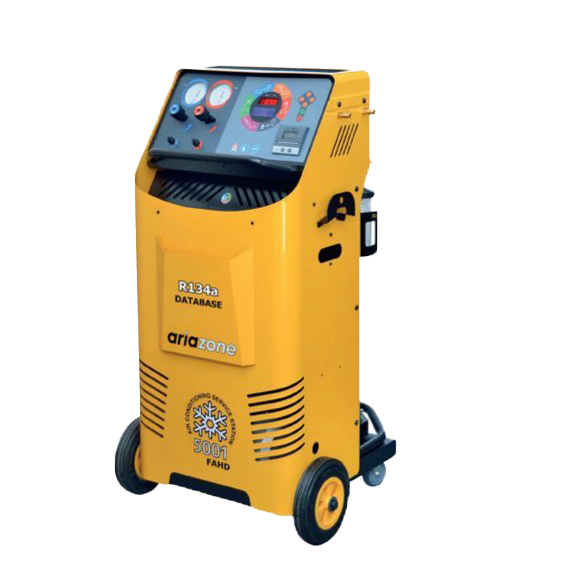

Ariazone 5001 FAHD
Fully Automatic Charging Station - R134a
Suitable for servicing passenger, light commercial vehicles including truck and mini bus a/c systems.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
FEATURES
Simple dashboard (four arrows, plus 'start' and 'stop' button) allows quick navigation through the menu in various languages upon selection. An on-board database with over 1500 car and truck references allows the user to find proper charging weights and lubricant types. Easy connection to a PC or laptop by use of USB port. Refrigerant management software allows monitoring of total amount of refrigerant recovered or charged. The complete procedure is printed for future reference.
• Manual override option
• Automatic oil and dye injection
• Thermal printer
• 22kg Refrigerant cylinder
• Includes vehicle database
Enquiry
|
Technical data:
|
|
|
Refrigerant
|
R134a,27kg
|
|
Vacuum pump capacity
|
100 I/min - Dual stage
|
|
Vacuum level
|
0.3 Pa
|
|
Refrigerant recovery rate
|
0.38kg /min (liquid state)
|
|
Service hoses
|
3m, R134a quick couplers
|
|
Gauges
|
LP & HP - D 68mm kl.1.0
|
|
Max. operating pressure
|
22 bar
|
|
Number of fitters
|
3
|
|
Operating voHage
|
220 - 240 VAC / 50-60Hz,
|
|
Chassis
|
Sturdy all steel construction
|
|
Dimensions I Weight
|
62 x 60 x 112 cm/ 85kg
|
|
Approvals
|
CE
|
|
Service Interval
|
Automatic indicator
|
|
Printer
|
57mm thermal printer
|
