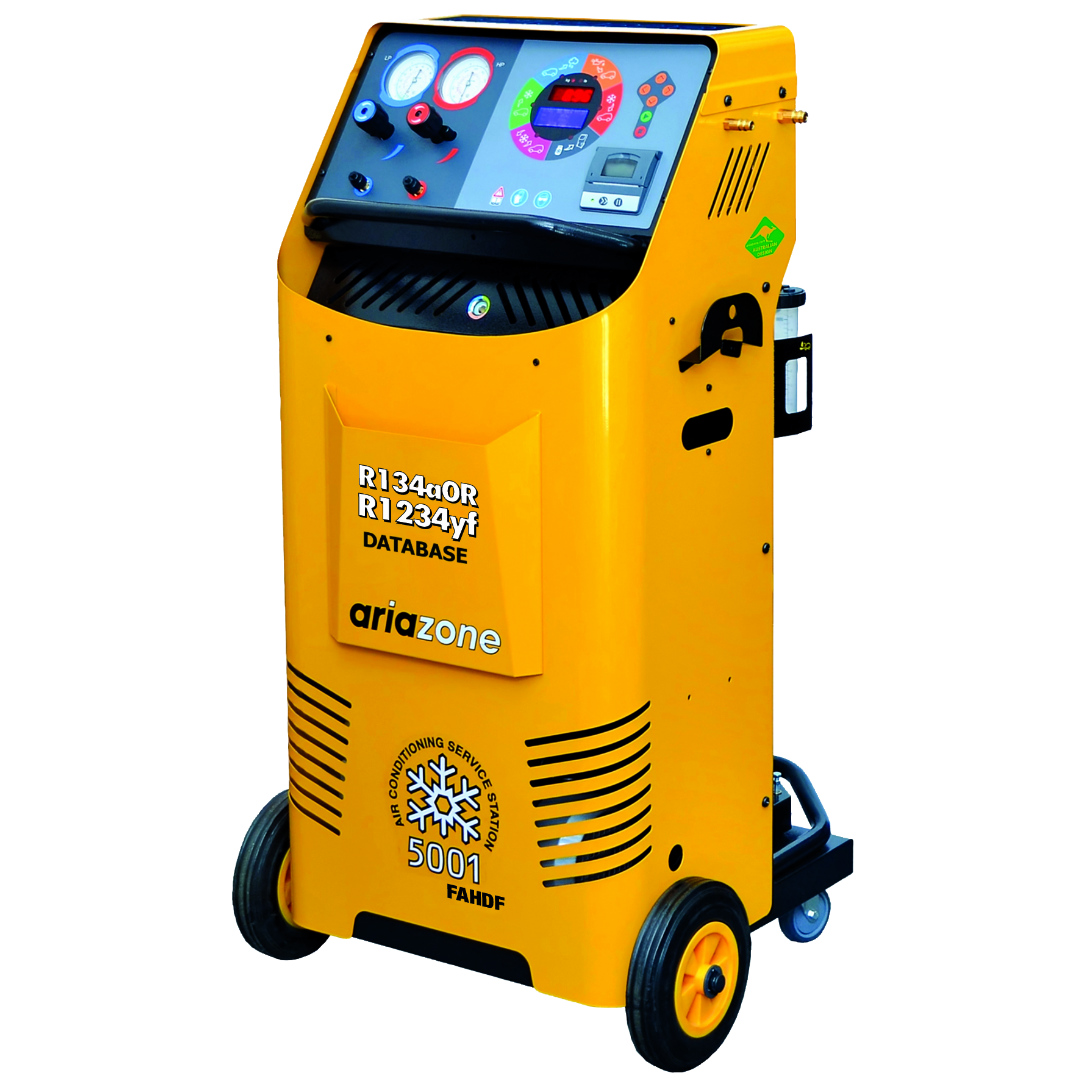

Ariazone FAHDB R134a/R1234yf

Technical data:

Refrigerant

R134a or R-1234yf, 27kg

Vacuum pump capacity

115 I/min (4cfm) - Dual stage

Vacuum level

 20 microns

Refrigerant recovery rate

0.40kg /min (liquid state)

Service hoses

  R-134a and R-1234yf with quick couplers

Gauges

 LP & HP - D 68mm  (R-134a and R-1234yf)

Max. operating pressure

 22 bar

Number of fitters

3

Operating voHage

220 - 240 VAC / 50-60Hz,

Chassis

 Sturdy all steel construction

Dimensions I Weight

62 x 60 x 112 cm/ 85kg

Approvals

 CE

Service Interval

Automatic indicator

Printer

57mm thermal printer
