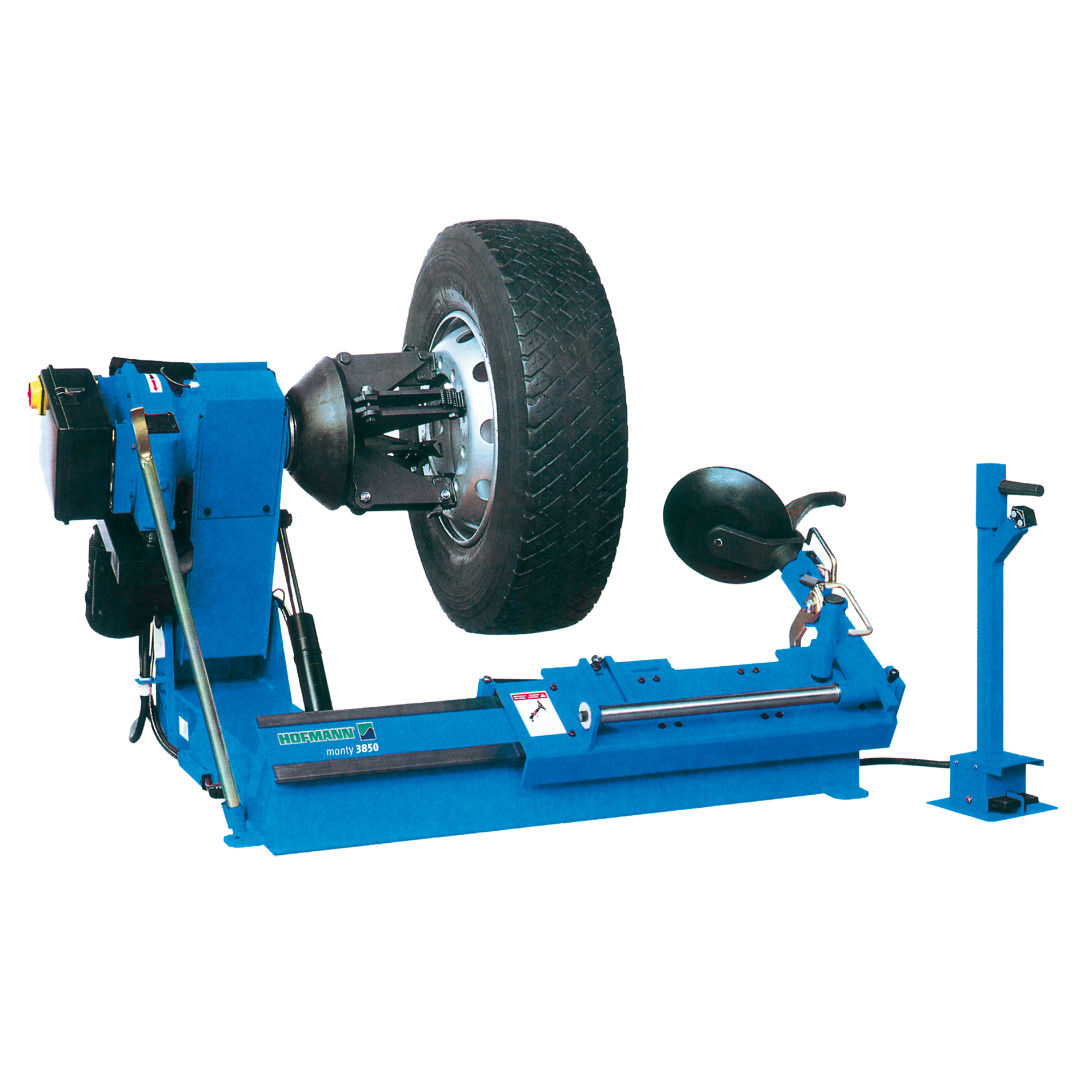

Hofmann Monty 3850 for trucks

For wheels type	Road
Rim diameter no extensions	14” - 26”
Rim diameter with extensions	-
Clamping center bore range	130 - 560 mm mm
Wheel diametre	1500 mm
Wheel width	700 mm
Max wheel weight working position	1000 Kg
Clamping type	Tulip clamp double effect
Clamping axial orientation	horizontal
Clamping force	76.5 kN
Chuck speed	1
Bead breaker type	Disk
Bead braking force	27000 N
Mounting tool type	Tool
Demounting tool type	Fixed Disk / Tool
Tools tangential to the rim	No
Tool left/right travel	Manual 3 positions
Tool rotation	Manual w/ lever
Tool positioning	Manual
Hydraulic pump flow	4,5
Hydraulic pressure	160 bar
Carriage, cylinder diameter	45 mm
Chuck arm, cylinder diameter	60 mm
Integrated wheel lift	No
Hydraulic motor	1,5 kW
Chuck motor	1,8 kW
Power supply	400 VAC 3ph 50Hz
Max footprint dimensions	1670 x 1400 x 840
Net weight	540 Kg
