Overview

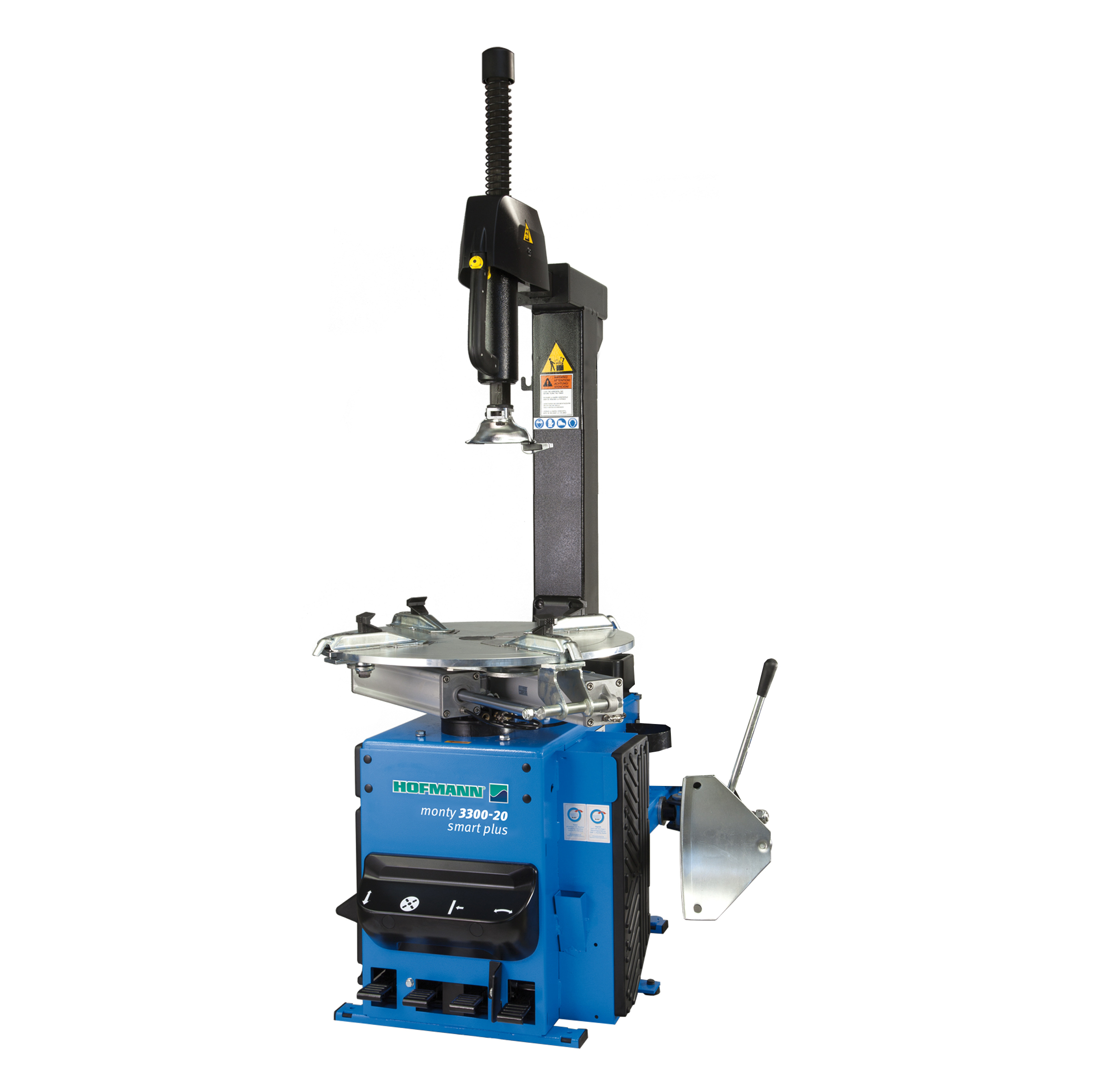

The Monty 3300-20 smart GP – The pneumatic tilt-back post tyre changer with low footprint and 20“outside clamping capability ideal for the use in general service shops, low-volume
tyre shops or those tight on space.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
FEATURES
- Double-acting bead breaker cylinder
- Mounting head adjustable
- Post pneuatically locked in working position
- Self-centring four-jaw turntable for correct clamping of the wheels
- Plastic protections inside jaws and on mounting head
Note: easymont® pro helper arm OPTIONAL
Enquiry
| M/D tool technology |
M/D tool & bead lever |
| Tower technology |
Pneumatic tilt back |
| Clamping System |
Turntable & clamping jaws |
| Tool vertical positioning |
Pneumatic |
| Jaw type |
Adjustable - Sliding |
| Clamping range |
10"-24" |
| Outside clamping range |
10"-24" |
| Inside clamping range |
12"-24" |
| Max wheel width |
380 mm |
| Max wheel width |
15 inch |
| Max. Wheel diameter |
1000 mm |
| Wheel diameter |
39.4 inch |
| Breaking force |
12 kN |
| Rotation speed |
CW 7 - 18 rpm CCW 7 rpm |
| Bead seating- Top-side inflation |
yes |
| Toolbox |
Standard |
| Easymont pro |
Standard |
| Wheel lift |
Optional |
| Capability |
70 kg |
| Power supply |
230 VAC 1ph 50/60 Hz |
| Power supply (Amperage) |
16 A |
| Installed motor power |
0,9 kW |
| Dimensions LxWxH |
1920 x 1615 x 1685 mm |
| Dimensions LxWxH |
75.6" x 63.6" x 66.3" |
| Weight |
270 Kg |
