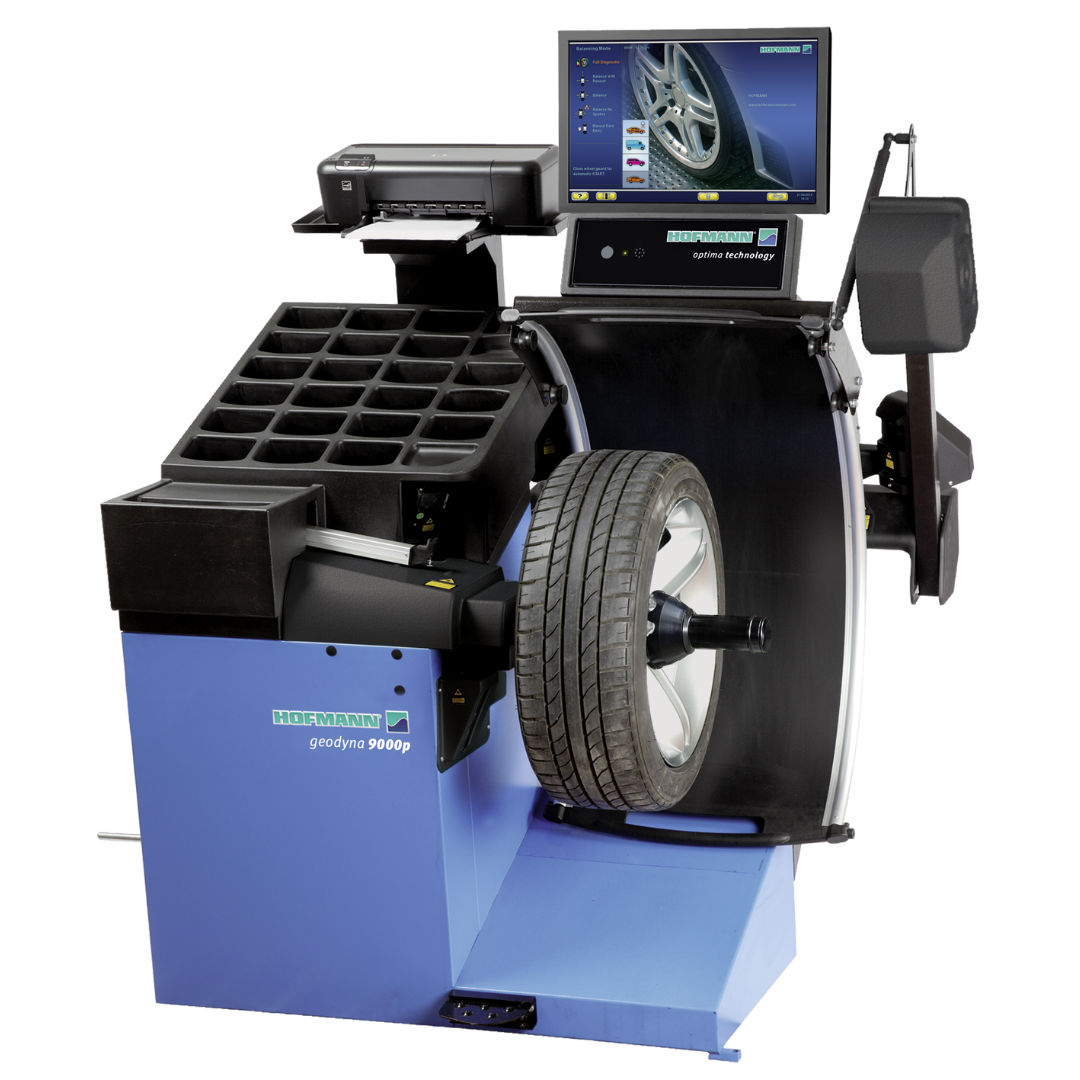

The Geodyna 9000P is a video wheel balancer for cars and light trucks.
The geodyna® 9000p features fully automatic non-contact acquisition of all data via 3D imaging technology and five high-resolution cameras.
Key Features include the Power Clamp clamping system, pinpoint easyWEIGHT laser, plus a touch screen interface for unequaled usability, performance and precision.
Automatic Acquisition - Non-contact 3D imaging technology is virtually error-proof: just clamp the wheel, close the guard and let the geodyna 9000p do the rest. Automatic and non-contact detection of wheel dimensions, balancing mode, number and position of spokes, amount and position of weights, lateral and radial run-out of tire and rim, match mounting and geometric issues
Run-Out Measurement - Non-contact 3D imaging technology scans the rim and tire profile to measure radial tire run-out, bead seat run-out on the bare rim and radial and lateral rim run-out on both sides
3D Imaging - Five high resolution laser cameras scan the complete rim and tire profile to provide visual evidence of results, increase customer awareness and improve customer satisfaction
Run-Out Force Vectoring (RFV) - Determines the virtual loaded run-out contact patch of the wheel assembly and calculates the spring rate by measuring tread width, sidewall height, surface singularities and estimated tire pressure
Sidewall & Tread Analysis - The wheel is scanned to within 0.1 mm accuracy to examine all externally visible scratches, cuts, bulges, blisters, flat spots and uneven wear-out that could potentially lead to safety issues
Tire Wear-Out Prediction - Predicts the tire wear-out point to help prepare the customer for when a replacement may be needed
Advanced Spoke Detection - Detects spokes to provide optimum placement of weights, allowing for accurate balancing of alloy spoke rims while preserving their visual appearance
Wheel Data Freeze - Allows the operator to save the data detected on the first rim of a set of identical wheels, reducing data acquisition time for subsequent identical wheels
Smart Profile - Automatically detects optimum balancing program by determining amount, position and type of the balance weights on the basis of rim dimensions saved in memory and imbalance data determined during measurement
