Overview

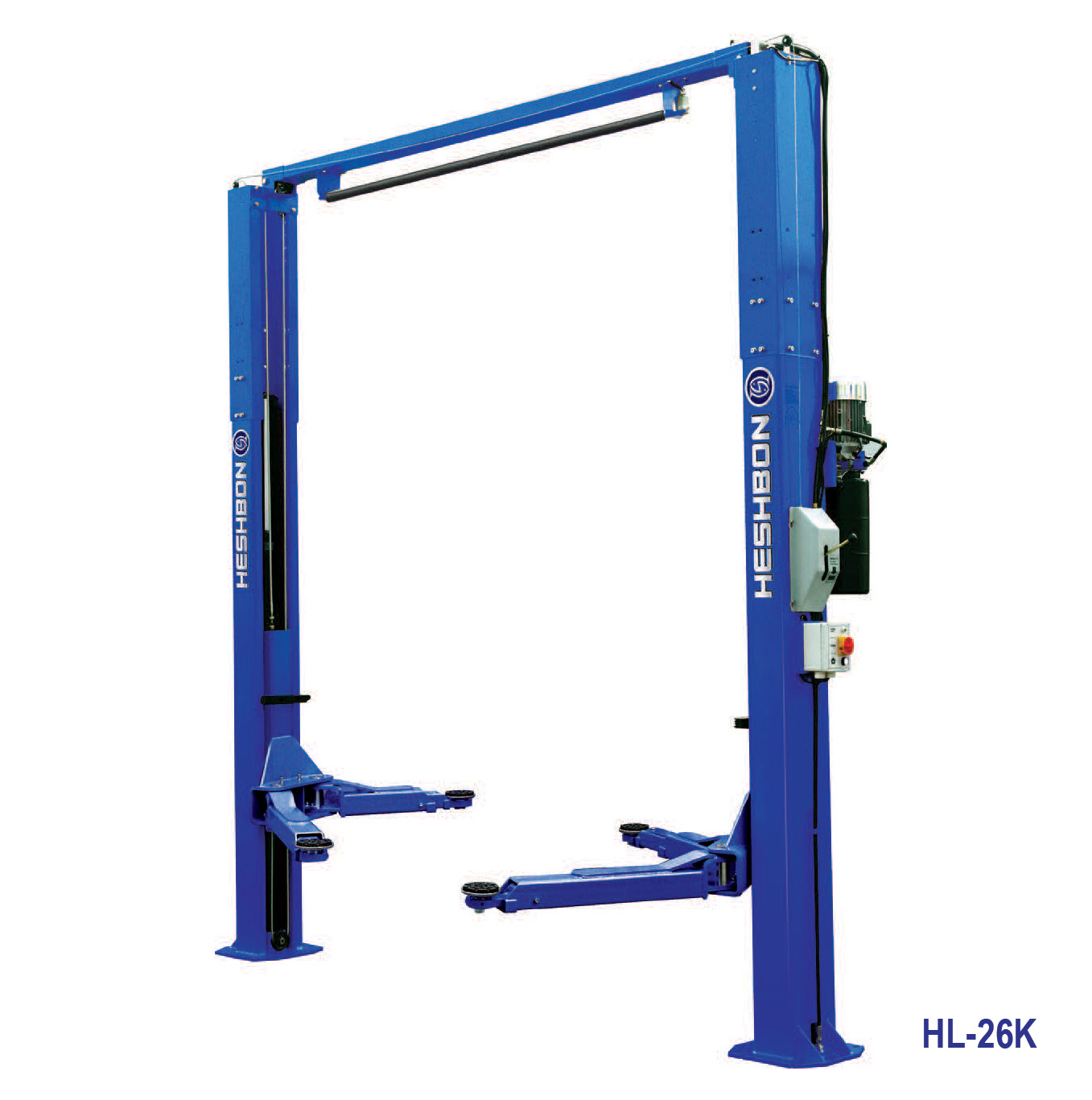

The HL-26K, designed and manufactured in Korea, this versatile Hoist is a affordable choice in a competitive market that will be an upgrade to your workshops capabilities. With a 4 Tonne lift capacity this hoist will service most cars on the roads today.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
FEATURES
- High-Performed durable RAM type cylinders in each post provides powerful and safety lifting performance
- High quality pre-stretched synchronization wire rope
- Double telescopic pads screw
- Automatic arm restraint
- Durable anti-friction carriage guides
- Hand lever for manual type locker release device
- Top limit touch bar and door protection rubber blocks protect the vehicle body
- 250mm height adjustable top cross bar
View parts list
Enquiry
SPECIFICATIONS
Model No. HL-26K
Lifting Capacity (kg) 4,000kg
Max.Lifting Height (mm) 1,890 ~ 1,930mm
Dimension (mm) 2,726(L) X 3,440(W) X 3,750(H)
Power Supply & Motor 1ph : 2.5HP, 220V, 50/60Hz & 3ph : 2HP, 4 Poles, 220/380V, 50/60Hz
Net Weight 760kg
