Overview

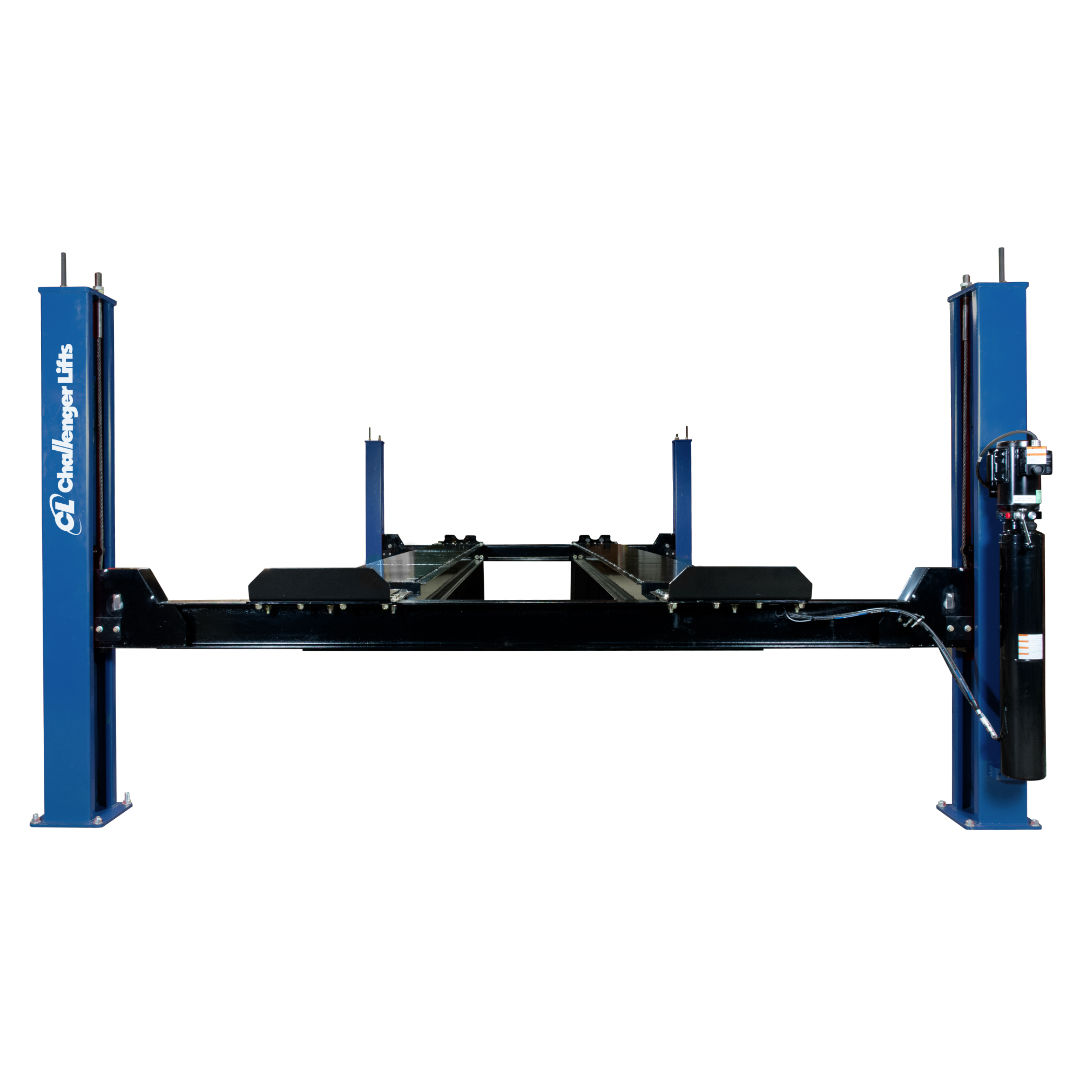

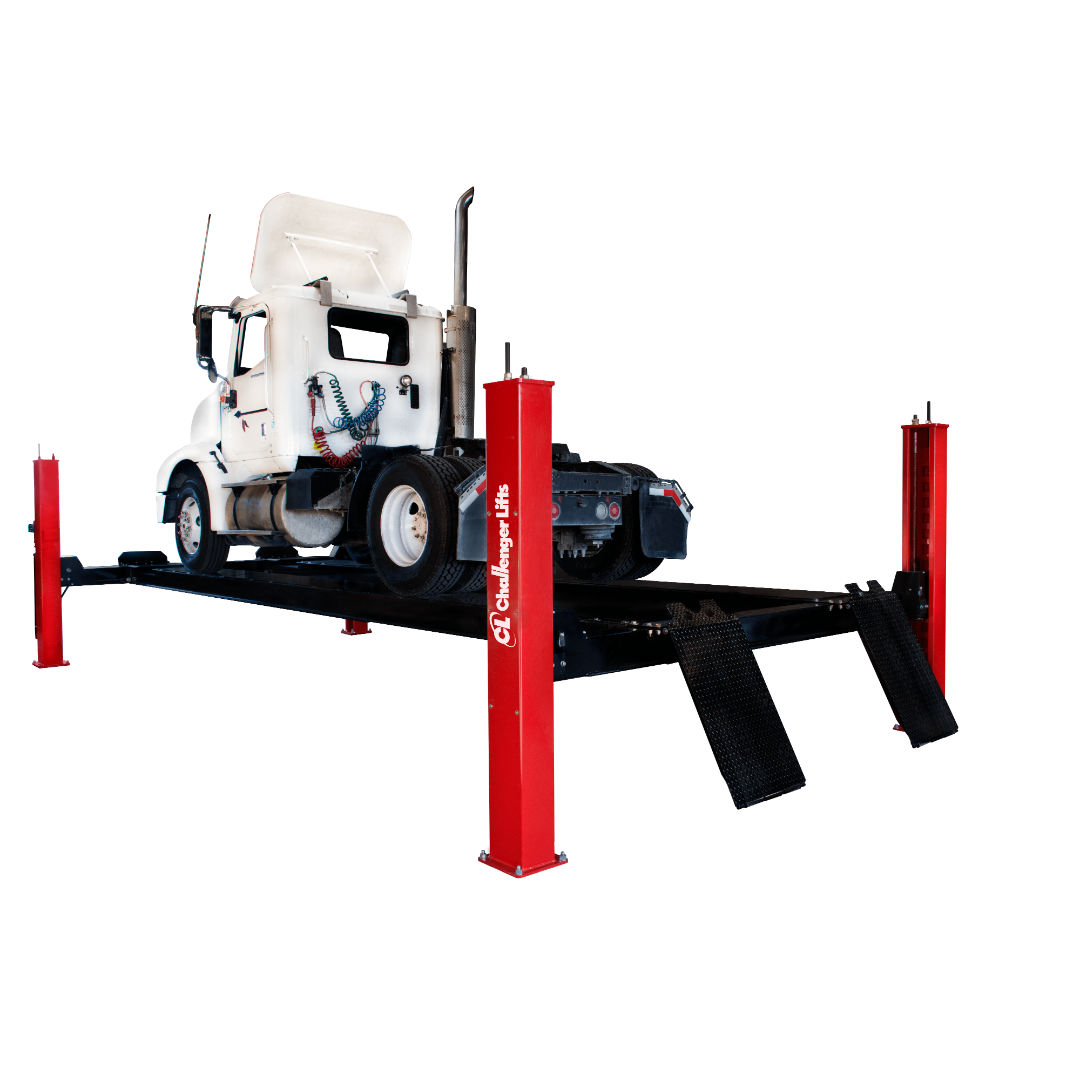

Challenger engineered our new 30,000 lb / 13,607kg capacity 4-post 4030 series lift with safety and durability in mind. Challenger also integrated our time-proven cable-driven lift system with heavy-duty steel sheaves and cables for optimal performance. A single-point air actuated lock release makes these lifts simple to use. Choose between general service or alignment deck models as well as three lengths to fit your shop’s needs. A range of optional accessories is also available.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
CALL LOGICAR FOR AVAILABILITY
FEATURES
- ALI-Certified Cable-Driven 13,608KG 4 Post Hoist!
- 3 lengths to accomodate 244.5" - 318.625"
- Large heavy-duty steel sheaves and cables
- Time-proven cable and cylinder design system
- 71.75” rise height provides more work space underneath vehicles
- Heavy-duty cylinder for optimal performance and minimal maintenance
- Single point air actuated lock release disengages all column locks simultaneously
- Multiple locking positions for a variety of alignment and general service tasks
- Compatible with the industry’s latest camera imaging alignment systems
- Available recessed heavy duty steel turnplates provide accurate readings
- Durable non-skid louvered approach ramps for positive vehicle traction and technician safety
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan (Sold Separately)
Challenger Lifts USA meet strict standards to obtain Gold Label of the ANSI Accredited ALI Certification, which by Australian standards is required for Worksafe registration.
Compliance and safety is a fundamental duty at Logicar. Logicar can provide Worksafe Design Registration certificates to help you make the right decision in creating a safe workplace for your employees.
Enquiry
Model Number
|
4030SFX
|
4030EFX
|
4030XFX
|
4030SAX
|
4030EAX
|
4030XAX
|
Lifting Capacity
|
30,000 lbs/13,607kg
|
Max. Wheelbase
|
244.5”
|
281”
|
317”
|
244.5”
|
281”
|
317”
|
Rise Height
|
71.75”
|
Overall Length
|
308”
|
344”
|
380”
|
308”
|
344”
|
380”
|
Overall Width
|
172.75”
|
Inside Columns
|
152”
|
Between Columns
|
246.125”
|
282.625”
|
318.625”
|
246.125”
|
282.625”
|
318.625”
|
Height of Columns
|
92.25”
|
Height of Runways
|
8.5”
|
Width of Runways
|
24”
|
Width Btw. Runways
|
46” - 52”
|
Air Supply Required
|
90 - 120 psi
|
Motor / Voltage
|
3HP, 208v - 230v
|
Speed of Rise
|
TBD
|
Max 2 Wheel Alignment
|
-
|
-
|
-
|
219.5”
|
256”
|
292”
|
Min Rec. Bay Size
|
28’ x 17’
|
31’ x 17’
|
34’ x 17’
|
28’ x 17’
|
31’ x 17’
|
34’ x 17’
|
ALI/ETL Certified
|
√
|
√
|
√
|
√
|
√
|
√
|
