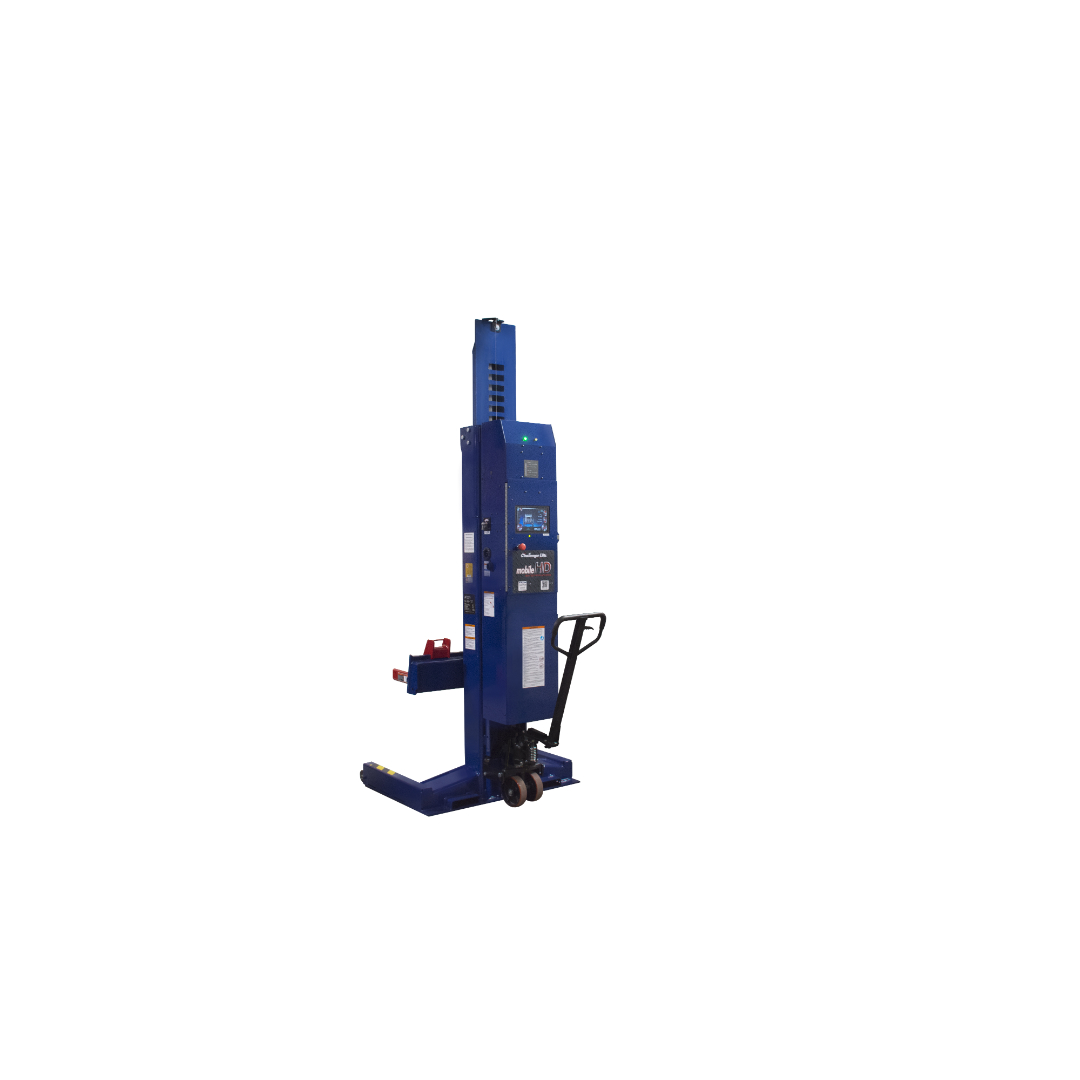

CHALLENGER CLHM-140 & CLHM-190

Model Number CLHM-190W

CLHM-140

CLHM-190

CLHM-190W

Lifting Capacity Per Column1

14,000 lbs (6,350kg)

19,000 lbs (8618kg)

19,000 lbs (8,618kg)

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Max. Lift Height (4 or more units)

69" (1,753 mm)

Max. Lift Height (2 units - Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" - 24.5"

(127 - 622 mm)

5" - 24.5"

(127 - 622 mm)

4" - Max det.

by tire diameter

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" (1524mm) per min.

Weight of Lift Unit

1,485 lbs (674 kg)

1,510 lbs (685 kg)

1,575 lbs (714 kg)

Footprint of Lift Unit

560 sq in.

(3,613 sq cm)

600 sq in.

(3,870 sq cm)

Ground Pressure for each Lift (Max. Load)

27.7 psi (191 kla)

36.6 psi (252 kla)

34.3 psi (236 kla)

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 amps
