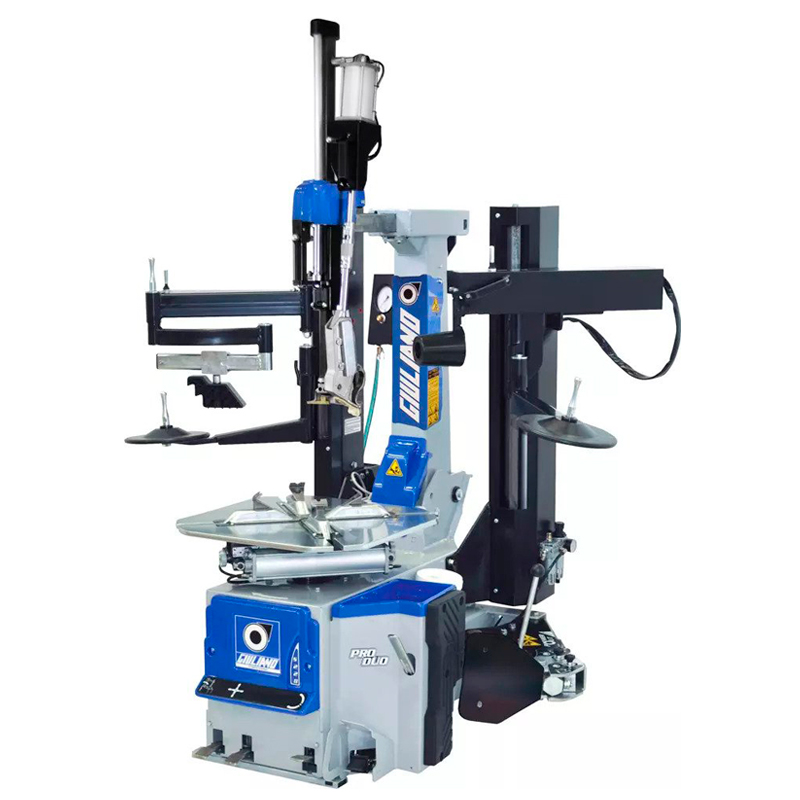

Giuliano S228PRO Duo Leverless Tyre Changer

FEATURES

• Tilting tower, sliding horizontal arm with 41mm operating arm
• Bead breaker double effect cylinder 200mm
• Reinforced chassis and tower
• Equipped with lever - no lever tyre mounting/demounting system
• Tabletop thickness 14 mm w/adjust jaws (Giuliano Patent)
• Tyre inflation by pedal (Standard)
• Suitable for tubeless tyre beat seating system (Optional)
• "Easy access" extractable pedal box for quick service;
• PO system, Giuliano patent, for granting no BB shovel stuck into the rim;
• Robotic pipe for operating arm positioning/lock

Enquiry

Full Name:

Company:



Email:

Contact Number:

Postcode or State:

Product:

Your Enquiry:

ReCAPTCHA:

Enter security code:

Please type the numbers above

• Rim clamping from outside 10-26"
• Rim clamping from inside: 12-24"
• Max. tyre diameter: 1100mm
• Max. tyre width: 415mm
• Bead breaker cylinder force at 10 bar: 30800 N
• Operating pressure: 10 bar
• Power Supply Voltage: 400V - 3ph / 2 Speed 220V - 1ph  220V 1ph / 2 speed
• Motor power 0.8/1.1kW (3ph)
• Rotation speed 7-14 rpm
• Pre-set tyre inflating pressure 3.5 Bar (50 Psi)
• Net weight: 409kg
• Max overall dimensions: 1950 x 1890 x 2160 mm
