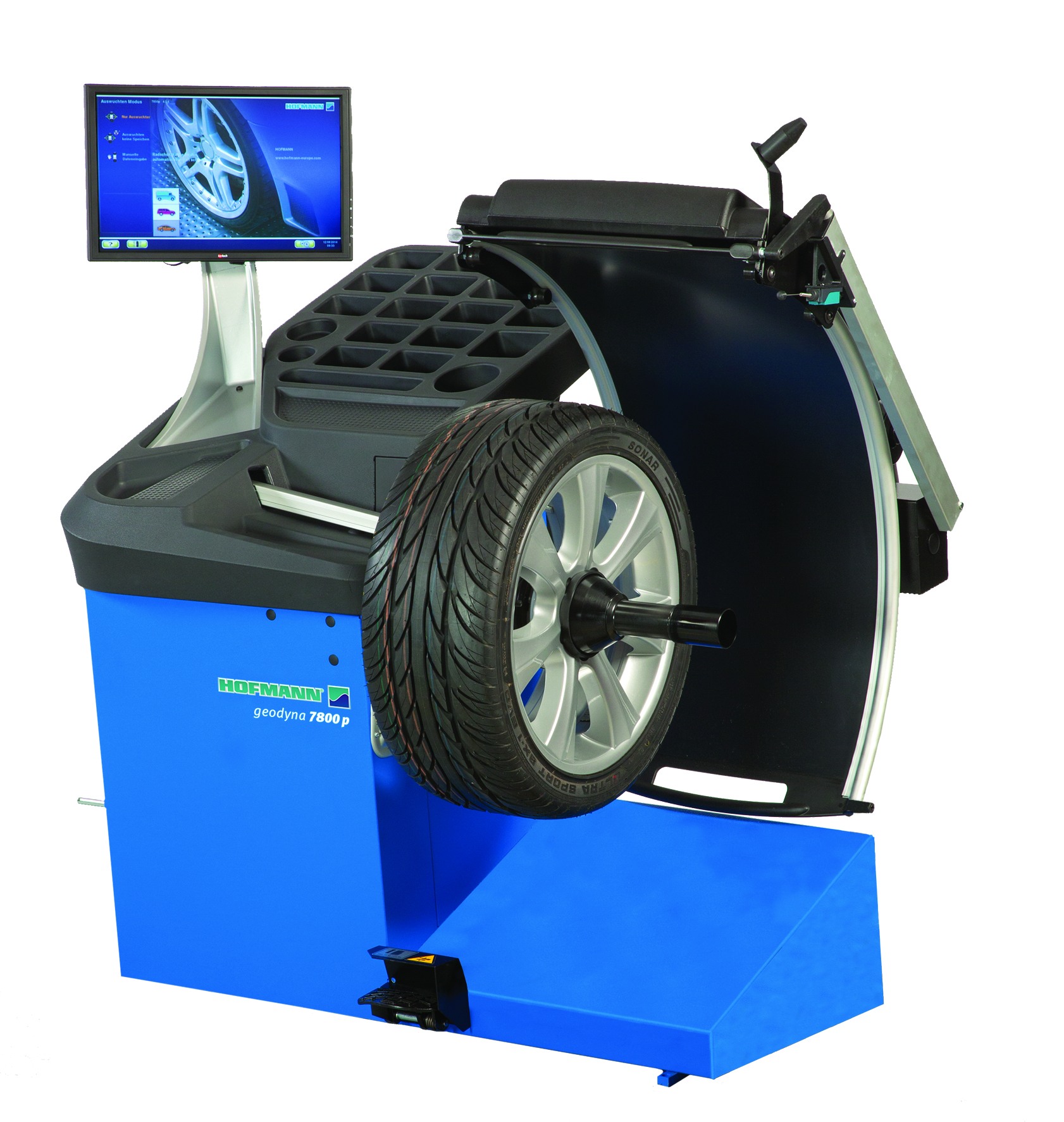

HOFMANN GEODYNA 7800P

FEATURES

• Rim scanner for
  - automatic non-contact rim profiling
  - automatic selection of balancing mode and weight position
  - automatic acquisition of rim diameter and offset

• Smart Sonar for automatic non-contact acquisition of rim width

• Touchscreen monitor with graphical user interface PLATINUM – fast and very intuitive

• easyWeight: fast pinpoint bottom weight placement. Pinpoint laser light indicator to accurately position adhesive weights on the wheel

• Alternative positioning of adhesive weights with the geodata® gauge arm

• Torque-controlled Power Clamp device – fast and accurate clamping of the wheel

• Stop-in-Position feature where the operator only has to touch the amount of unbalance on the screen and the wheel is automatically indexed to correction position

• QuickBal for reduced measurement time:
  Short start-stop cycle time: 4.5 seconds (15’’ rim)

• VPM measurement technique for uncompromised accuracy

• Telescopic wheel guard – requiring no additional back space

• New ergonomic weight tray

• Rim lighting to facilitate application of the geodata gauge arm

• Imbalance minimisation and optimisation programs

• High capacity, wheels up to 42” of diameter and 70 kg of weight

• Networking capability with the optional networking software

• Compatible with asanetwork

• Print-out with optional printer
