Overview

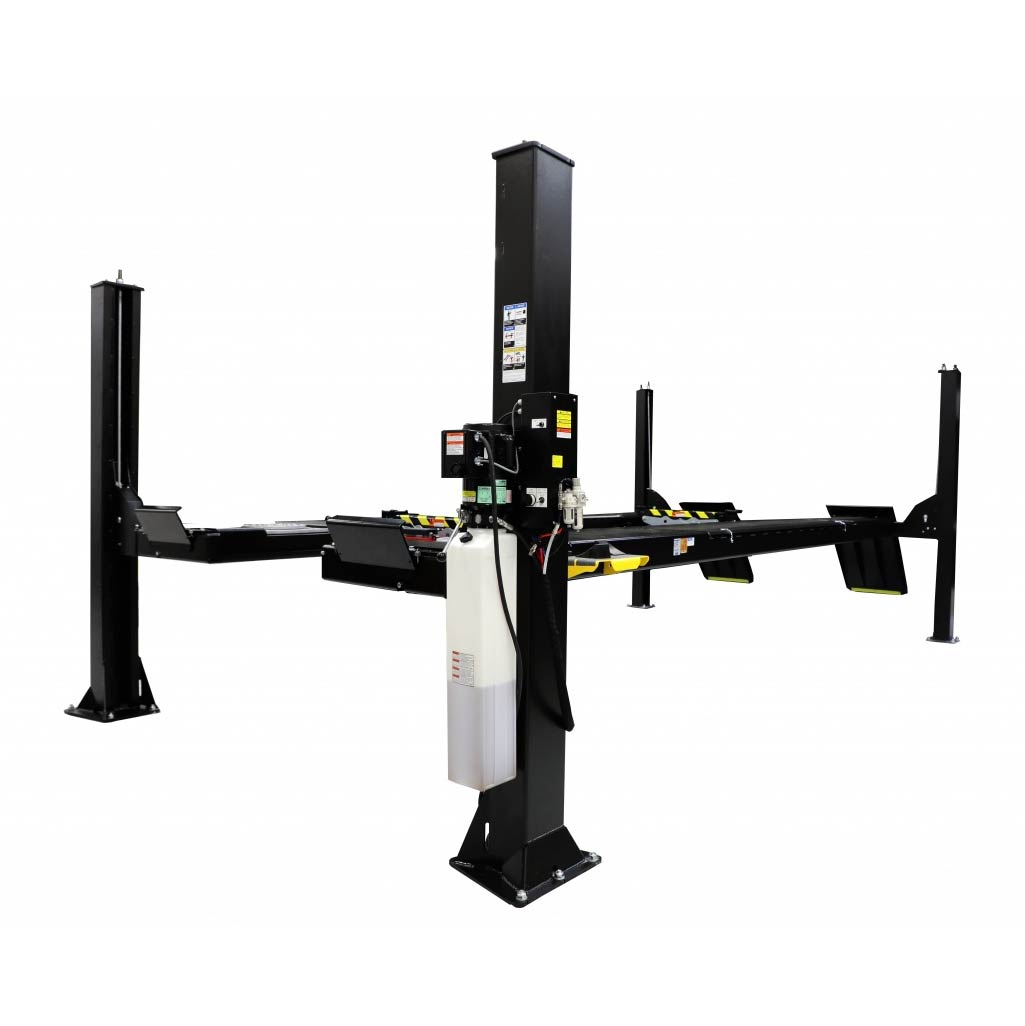

Challenger 4115 EFO/XFO, designed with productivity and safety in mind, our newly improved 15,000 lb 4 Post Hoist would be a great addition to any shop floor. With several configurations available, you’re sure to find the lift to meet your needs.
Download Brochure
Have a Question? Contact Us
CALL US 1300 322 782
CALL LOGICAR FOR AVAILABILITY
FEATURES
Increase your customer base with this lift as it can accommodate and service a wide range of vehicles. Anything from a small passenger car to a medium-duty truck, and even medium-sized vans. All while boosting workplace safety with our open front design, assisting technicians moving around a vehicle’s frame.
- All-new and wider 22” runways.
- Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
- Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry’s latest imaging alignment systems.
- 17 locking positions with improved lock design.
- Optional Alignment kit includes: rolling jacks, internal airline system, & stainless steel turn plates
Enquiry
Model Number |
4115EFO |
4115XFO |
4115EFX |
4115XFX |
AR4115EAO |
AR4115XAO |
AR4115EAX |
AR4115XAX |
Lifting Capacity |
6802 kg |
6802 kg |
6802 kg |
6802 kg |
6802 kg |
6802 kg |
6802 kg |
6802 kg |
Open or Closed Front |
Open |
Open |
Closed |
Closed |
Open |
Open |
Closed |
Closed |
Overall Length |
250.75" |
277" |
247.625" |
275.5" |
250.5" |
277" |
247.625" |
275.5" |
Overall Width |
142" |
142" |
142" |
142" |
142" |
142" |
142" |
142" |
Inside Columns |
Front: 120.75"
Rear: 125.5" |
Front: 120.75"
Rear: 125.5" |
125.5" |
125.5" |
Front: 120.75"
Rear: 125.5" |
Front: 120.75"
Rear: 125.5" |
125.5" |
125.5" |
Between Columns |
195" |
222.5" |
196" |
223.375" |
195" |
222.5" |
196" |
223.375" |
Height of Columns |
Front: 99.25"
Rear: 98" |
Front: 99.25"
Rear: 98" |
98" |
98" |
Front: 99.25"
Rear: 98" |
Front: 99.25"
Rear: 98" |
98" |
98" |
Height of Runways |
7" |
7" |
7" |
7" |
7" |
7" |
7" |
7" |
Width of Runways |
22.375" |
22.375" |
22.375" |
22.375" |
22.375" |
22.375" |
22.375" |
22.375" |
Width Between Runways |
40.625" |
40.625" |
40.625" |
40.625" |
40.625" |
40.625" |
40.625" |
40.625" |
Max. Wheelbase |
183" |
210.5" |
183" |
210.5" |
183" |
210.5" |
183" |
210.5" |
Rise Height |
78" |
78" |
78" |
78" |
78" |
78" |
78" |
78" |
Max. 2 Wheel Alignment |
- |
- |
- |
- |
167.75" |
195.25" |
167.75" |
195.25" |
Max. 4 Wheel Alignment |
- |
- |
- |
- |
68" - 158" |
68" - 158" |
68" - 158" |
68" - 158" |
Air Supply Required |
90-120 psi |
90-120 psi |
90-120 psi |
90-120 psi |
90-120 psi |
90-120 psi |
90-120 psi |
90-120 psi |
Motor / Voltage |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
Rise Time |
85 s |
85 s |
85 s |
85 s |
85 s |
85 s |
85 s |
85 s |
Min. Recomm. Bay Size |
14' x 24' |
14' x 26' |
14' x 24' |
14' x 26' |
14' x 24' |
14' x 26' |
14' x 24' |
14' x 26' |
ALI/ETL Certified |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Colors Available |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
