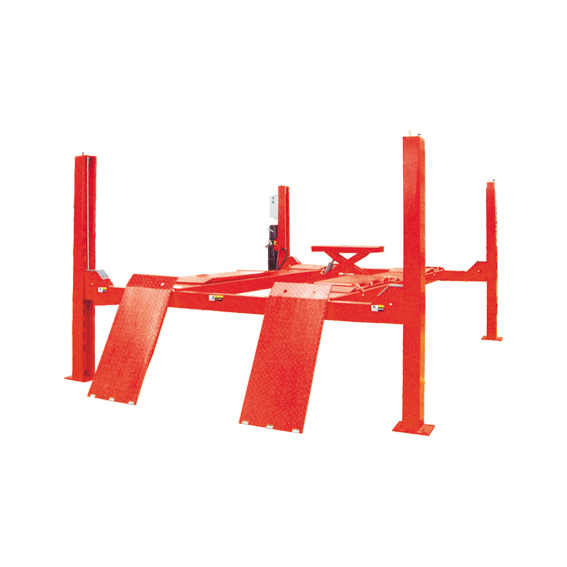

LAUNCH 5.5 TONNE WHEEL ALIGNMENT 4P

FEATURES

• 5500kg wheel alignment 4 post hoist
• Work Safe Australia, third party engineered and assessed and CE certified
• Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm
• Front wheel turn plate’s position is adjustable and rear wheel sliding plate is extended for various vehicle type
• Deployed with rolling jack with small scissor hydraulic lifting and lowering, can be moved back and forth and easy to adjustment tyre
• Positioning level’s accuracy is adjustable, distance between platforms is adjustable, wheel base in certain scope is adjustable
• Driven by hydraulic cylinder, full-scope mechanical safety locking by locking latch, manual lowering
• Cable rupture safety system ,effectively protects vehicle from overturn
• Four connected steel cables force synchronized movement of the lift, effectively prevent vehicles from sloping
• Cylinder travel limit device effectively protects cylinder and extends its lifespan
• Electric controlled lifting and lowering type is optional
• The installation position of turntable and side slip plate can be moved backwards and forwards Applicable for vehicles with different wheel base
• CE certificated

Applicable for vehicles with different wheel base
